This item is Discontinued.

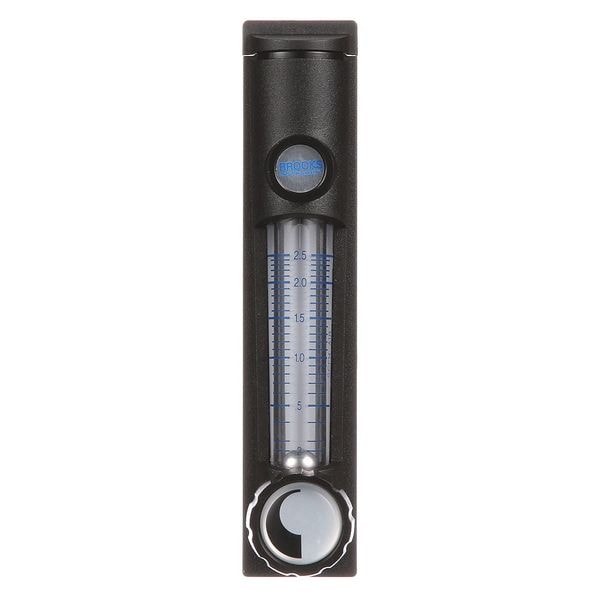

Brooks Flowmeter, Variable Area, SCFH ofAir.2-2.5 MR3A01BVBN

Flowmeter, Variable Area, SCFH ofAir.2-2.5 (Discontinued)

  • Mfr # MR3A01BVBN
  • Zoro # G2728117
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
MR3A01BVBN
Zoro #
G2728117
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/8 to 1 in
Connection Size
1/8 in
Width (In.)
1"
Connection Size (In.)
1/8 FNPT
Height
4 9/16 in
Height (In.)
4-9/16
Length (In.)
1-1/2"
Length
1 1/2 in
Width
1 in
Overall Height
4.8 in
Overall Width
1 in
Overall Length
1.5 in

Details

Item
Mechanical Flowmeter
Type
Variable Area
Housing Material
Polycarbonate
Flow Material
Air
Connection Type
FNPT
Max. Pressure
50 psi
Max. Viscosity
79.8 SUS
Wetted Materials
Brass, Buna, Polycarbonate
Flow Range
0.2 to 2.5 scfh
Fitting
Brass
Fluid Temp. Range
40 Degrees to 150 Degrees F
Max. Pressure (PSI)
100
Max. Temp. (F)
150
O-Ring
Buna
Seal Material
Buna-N
Standards
ISO 9001
Chamber Material
Polycarbonate
Accuracy (%)
+/-4
Flow Range @ SCFH of Air
0.2 to 2.5
Insert
Brass
Flow Range @ SCFH
0.2 to 2.5
Output Type
Scaled Pulse
Product Type
Molded Flow Meter
Flow Rate - Minimum
0.2 scfh
Media Temperature - Minimum
40 Degrees F
Mounting Orientation
Vertical
Flowmeter Type
Variable Area
Compatible Flow Material
Air
Unit Of Measure
Liters
Viscosity - Maximum
79.8 SUS
O-Ring Material
Buna-N
Flow Rate - Maximum
2.5 scfh
Wetted Material
Brass, Buna-N, Polycarbonate
Operating Pressure - Maximum
100 psig
Media Temperature - Maximum
150 Degrees F
Accuracy
+/-4%

Description

Mechanical Flowmeter, Product Type Molded Flow Meter, Flowmeter Type Variable Area, Accuracy +/-4 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Air, Media Temperature - Maximum 150 Degrees F, Media Temperature - Minimum 40 Degrees F, Viscosity - Maximum 79.8 SUS, Housing Material Polycarbonate, O-Ring Material Buna-N, Seal Material Buna-N, Shaft Material -, Wetted Material Brass, Buna-N, Polycarbonate, Standards ISO 9001, Unit Of Measure Liters

Restrictions

This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
