Brooks

Flowmeter, Variable, CCM of Water 20-300

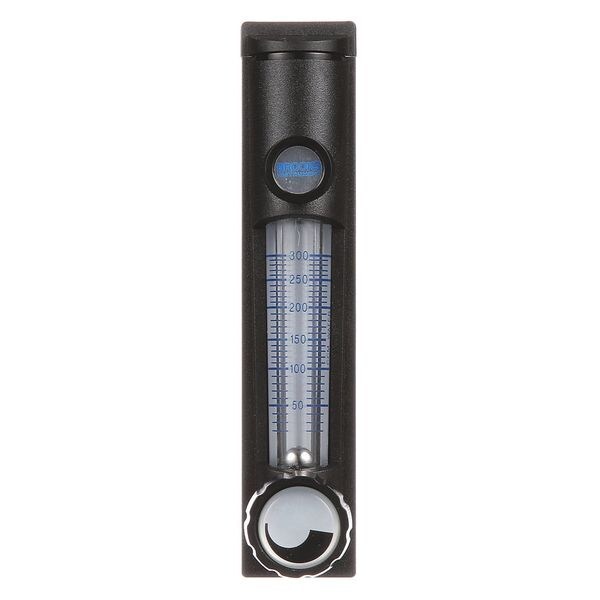

Brooks Flowmeter, Variable, CCM of Water 20-300 MR3L11SVVT
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$101.11
  • Item: Mechanical Flowmeter
  • Housing Material: Polycarbonate
  • Type: Variable Area
See full product details
This item ships free.
Total: $101.11

Brooks #MR3L11SVVT Specifications

  • Item: Mechanical Flowmeter
  • Housing Material: Polycarbonate
  • Type: Variable Area
  • For Pipe Size: 1/8 in to 1 in
  • Flow Material: Water
  • Connection Size: 1/8 in
  • Connection Type: FNPT
  • Max. Pressure: 100 psi
  • Wetted Materials: 303 Stainless Steel, Polycarbonate, Viton
  • Max. Viscosity: 16.4 cSt
  • Flow Range: 20 to 300 ccm
  • Fluid Temp. Range: 40 Degrees to 150 Degrees F
  • Fitting: Stainless Steel
  • Depth: -
  • Pressure Drop - 100% Flow (PSI): -
  • Flow Range @ CCM of Water: 20 to 300
  • Height: 4 9/16 in
  • Shaft Material: -
  • Height (In.): 4-9/16
  • Resetable Cumulative Totalizer: -
  • Width (In.): 1"
  • Connection Size (In.): 1/8 FNPT
  • Master Totalizer: -
  • GPM Max.: -
  • Accuracy (%): +/-4
  • Standards: -
  • Insert: Stainless Steel
  • Thread: -
  • Application: -
  • Agency Compliance: -
  • Cable Length (Ft.): -
  • Max. Reed Switch Current (mA): -
  • Seal Material: -
  • Center-Center Fitting Size: -
  • Gauge/Conductor: -
  • Display: -
  • Max. Temp. (F): 150
  • Chamber Material: Polycarbonate
  • Includes: -
  • Specific Gravity: -
  • Length: 1 1/2 in
  • Width: 1 in
  • Max. Voltage: -
  • Pressure Drop - 50% Flow (PSI): -
  • Length (In.): 1-1/2"
  • Flow Range @ CCM: 20 to 300
  • O-Ring: Viton
  • Max. Pressure (PSI): 100
  • Manufacturers Warranty Length: -
  • Center-Center Insert Size: -
  • Length (Straight Wireway): 1 1/2 in
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Mechanical Flowmeter, Mechanical Flowmeter, For Pipe Size 1/8 in to 1 in, Connection Size 1/8 in, Connection Type FNPT, Fluid Temp. Range 40 Degrees to 150 Degrees F, Wetted Materials Polycarbonate, 303 Stainless Steel, Viton, Max. Pressure 100 psi, Flow Range 20 to 300 ccm, Max. Viscosity 16.4 cSt, Flow Material Water, Variable Area, GPM Max. -, Max. Voltage -, Length 1 1/2 in, Width 1 in, Height 4 9/16 in, Housing Material Polycarbonate, Fitting Stainless Steel, Chamber Material Polycarbonate

Restrictions and Compliance

  • This product has been manufactured to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
