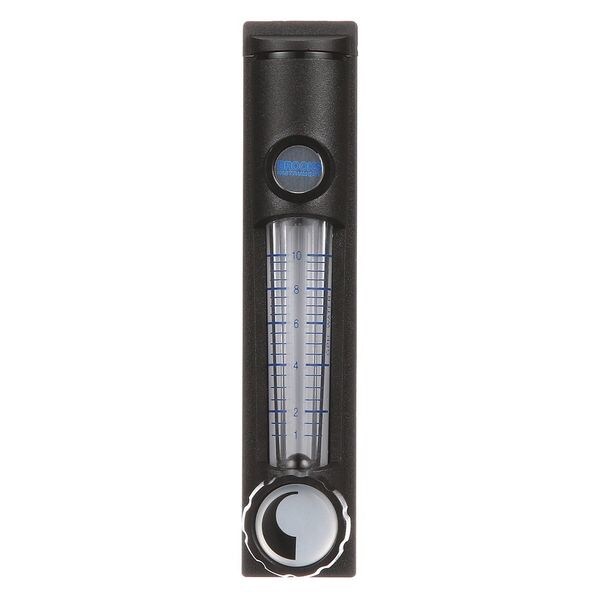

Brooks Flowmeter, Variable, GPH of Water, 1-10 MR3L20SVVT

Flowmeter, Variable, GPH of Water, 1-10 (Discontinued)

  • Mfr # MR3L20SVVT
  • Zoro # G1172647
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
MR3L20SVVT
Zoro #
G1172647
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/8 to 1 in
Connection Size
1/8 in
Width
1 in
Width (In.)
1"
Connection Size (In.)
1/8 FNPT
Height (In.)
4-9/16
Length (In.)
1-1/2"
Height
4 9/16 in
Length
1 1/2 in
Overall Width
1 in
Overall Height
4.8 in
Overall Length
1.5 in

Details

Item
Mechanical Flowmeter
Type
Variable Area
Housing Material
Polycarbonate
Flow Material
Water
Connection Type
FNPT
Max. Pressure
100 psi
Max. Viscosity
16.4 cSt
Wetted Materials
303 Stainless Steel, Polycarbonate, Viton
Flow Range
1 to 10 gph
Fitting
Stainless Steel
Fluid Temp. Range
40 Degrees to 150 Degrees F
Flow Range @ GPH
1 to 10
Chamber Material
Polycarbonate
Accuracy (%)
+/-4
Max. Temp. (F)
150
Standards
ISO 9001
Seal Material
Viton
Flow Range @ GPH of Water
1 to 10
O-Ring
Viton
Insert
Stainless Steel
Max. Pressure (PSI)
100
Output Type
Scaled Pulse
Product Type
Molded Flow Meter
Flow Rate - Minimum
1 gph
Viscosity - Maximum
16.4 cSt
Accuracy
+/-4%
O-Ring Material
Viton
Mounting Orientation
Vertical
Flow Rate - Maximum
10 gph
Flowmeter Type
Variable Area
Operating Pressure - Maximum
100 psig
Media Temperature - Maximum
150 Degrees F
Compatible Flow Material
Water
Wetted Material
303 Stainless Steel, Polycarbonate, Viton
Unit Of Measure
Liters
Media Temperature - Minimum
40 Degrees F

Description

Mechanical Flowmeter, Product Type Molded Flow Meter, Flowmeter Type Variable Area, Accuracy +/-4 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Water, Media Temperature - Maximum 150 Degrees F, Media Temperature - Minimum 40 Degrees F, Viscosity - Maximum 16.4 cSt, Housing Material Polycarbonate, O-Ring Material Viton, Seal Material Viton, Shaft Material -, Wetted Material 303 Stainless Steel, Polycarbonate, Viton, Standards ISO 9001, Unit Of Measure Liters

Restrictions

This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
