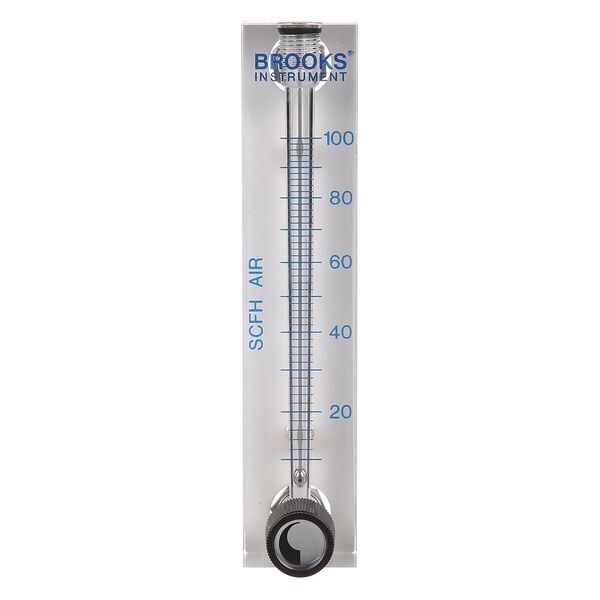

Meter, Air, 10-100 Scfh

BROOKS| Zoro #: G2046965| Mfr #: 2520A4A34SVVT

$91.50 /ea

This item ships free. Details.Standard ground shipping.
Pressure Drop - 50% Flow (PSI): -Shaft Material: -Max. Voltage: -
Save 15%. Sign up for Z-mail.


Zoro #: G2046965 Mfr #: 2520A4A34SVVT
Pressure Drop - 50% Flow (PSI): -Shaft Material: -
Max. Voltage: -Pressure Drop - 100% Flow (PSI): -
Max. Viscosity: 79.8 SSULength (In.): -
Housing Material: AcrylicApplication: For Measuring Liquid or Gas Flows in Air Sampling Equipment, Chromatography Systems, Desalinization Equipment, Gas Analyzers, Medical Systems, Photo Equipment, Water Treatment and Distribution and in Aquaculture System
Flow Range @ SCFH: 10 to 100For Pipe Size: 1/8" to 1"
Chamber Material: -Agency Compliance: -
Seal Material: -Item: Mechanical Flowmeter
Depth: 1.125Flow Range: 10 to 100 scfh
Type: Variable AreaMax. Reed Switch Current (mA): -
Width (In.): 1-3/8"Height (In.): 6-1/2
Display: -Specific Gravity: -
Master Totalizer: -Insert: 10-32 Threaded Brass
Center-Center Fitting Size: 5.5Cable Length (Ft.): -
Connection Size (In.): 1/8 FNPTFlow Material: Air
Fitting: Stainless SteelMax. Temp. (F): 150
Resetable Cumulative Totalizer: -Center-Center Insert Size: 3.5
Gauge/Conductor: -Flow Range @ SCFH of Air: 10 to 100
Max. Pressure (PSI): 100O-Ring: Viton
Includes: ValvesAccuracy (%): +/-3.0
Country of Origin (subject to change): United States


Mechanical Flowmeter, Mechanical Flowmeter, For Pipe Size 1/8 In. to 1 In., Connection Size 1/8 In., Connection Type FNPT, Fluid Temp. Range 40 Degrees to 150 Degrees F, Wetted Materials Clear Acrylic, Stainless Steel, Viton, Max. Pressure 100 psi, Flow Range 10 to 100 scfh, Max. Viscosity 79.8 SSU, Flow Material Air, Variable Area, Max. Voltage -, Width 1-3/8 In., Height 6-1/2 In., Housing Material Acrylic, Fitting Stainless Steel, Chamber Material -, Seal Material -, Shaft Material -

Restrictions and Compliance

This product has been manufactured to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
