This item is Discontinued.

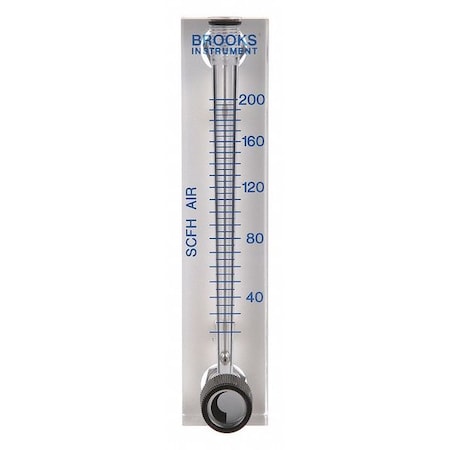

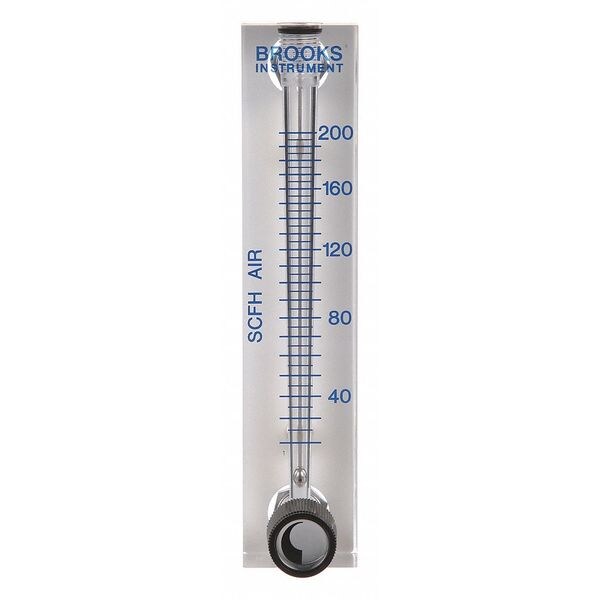

Brooks Meter, Air, 20-200 Scfh 2520A4A36SVVT

Meter, Air, 20-200 Scfh (Discontinued)

  • Mfr # 2520A4A36SVVT
  • Zoro # G1021447
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2520A4A36SVVT
Zoro #
G1021447
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/8 to 1 in
Connection Size
1/8 in
Height
6 1/2 in
Connection Size (In.)
1/8 FNPT
Width (In.)
1-3/8"
Width
1 3/8 in
Center-Center Fitting Size
5 1/2
Depth
1 1/8 in
Height (In.)
6-1/2
Center-Center Insert Size
3 1/2 in
Overall Width
1.4 in
Overall Length
1.1 in
Overall Height
6.5 in

Details

Item
Mechanical Flowmeter
Type
Variable Area
Housing Material
Acrylic
Flow Material
Air
Connection Type
FNPT
Max. Pressure
100 psi
Wetted Materials
Clear Acrylic, Stainless Steel, Viton
Max. Viscosity
79.8 SUS
Flow Range
20 to 200 scfh
Fitting
Stainless Steel
Fluid Temp. Range
40 Degrees to 150 Degrees F
O-Ring
Viton
Max. Temp. (F)
150
Includes
Valves
Application
For Measuring Liquid or Gas Flows in Air Sampling Equipment, Chromatography Systems, Desalinization Equipment, Gas Analyzers, Medical Systems, Photo Equipment, Water Treatment and Distribution and in Aquaculture System
Flow Range @ SCFH
20 to 200
Seal Material
Viton
Flow Range @ SCFH of Air
20 to 200
Insert
10-32 Threaded Brass
Max. Pressure (PSI)
100
Accuracy (%)
+/-3
Output Type
Scaled Pulse
Standards
International Calibration Certificate (ICC), Pressure Equipment Directive (97/23/EC), RoHS
Product Type
Machined Flow Meter
Media Temperature - Minimum
40 Degrees F
Flow Rate - Minimum
20 scfh
Media Temperature - Maximum
150 Degrees F
Mounting Orientation
Vertical
O-Ring Material
Viton
Flow Rate - Maximum
200 scfh
Accuracy
3%
Flowmeter Type
Variable Area
Operating Pressure - Maximum
100 psig
Wetted Material
Acrylic, Stainless Steel, Viton
Unit Of Measure
Liters
Viscosity - Maximum
79.8 SUS
Compatible Flow Material
Air

Description

Mechanical Flowmeter, Product Type Machined Flow Meter, Flowmeter Type Variable Area, Accuracy 3 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Air, Media Temperature - Maximum 150 Degrees F, Media Temperature - Minimum 40 Degrees F, Viscosity - Maximum 79.8 SUS, Housing Material Acrylic, O-Ring Material Viton, Seal Material Viton, Shaft Material -, Wetted Material Acrylic, Stainless Steel, Viton

Restrictions

This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
