This item is Discontinued.

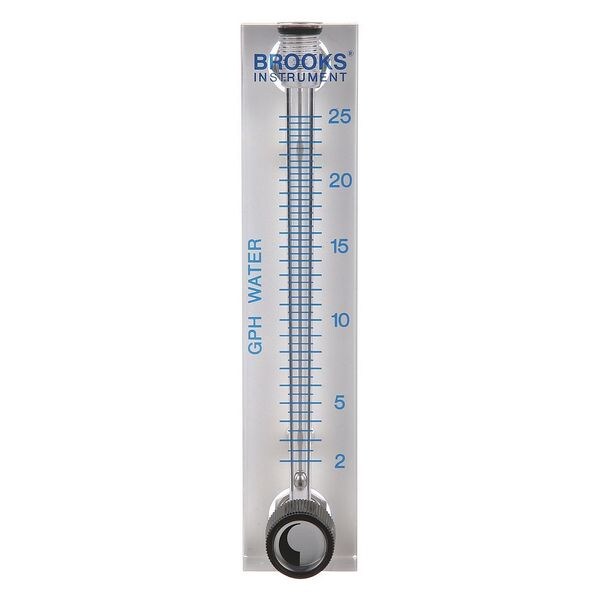

Brooks Meter, Water, 2-25 Gph 2520A4L48SVVT

Meter, Water, 2-25 Gph (Discontinued)

  • Mfr # 2520A4L48SVVT
  • Zoro # G2384417
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2520A4L48SVVT
Zoro #
G2384417
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/8 to 1 in
Connection Size
1/8 in
Height
6 1/2 in
Center-Center Fitting Size
5 1/2
Center-Center Insert Size
3 1/2 in
Height (In.)
6-1/2
Depth
1 1/8 in
Width (In.)
1-3/8"
Width
1 3/8 in
Connection Size (In.)
1/8 FNPT
Overall Length
1.1 in
Overall Width
1.4 in
Overall Height
6.5 in

Details

Item
Mechanical Flowmeter
Housing Material
Acrylic
Type
Variable Area
Flow Material
Water
Connection Type
FNPT
Max. Pressure
50 psi
Wetted Materials
Clear Acrylic, Stainless Steel, Viton
Flow Range
2 to 25 gph
Fitting
Stainless Steel
Fluid Temp. Range
40 Degrees to 150 Degrees F
Max. Temp. (F)
150
Flow Range @ GPH
2 to 25
Max. Pressure (PSI)
100
Seal Material
Viton
Application
For Measuring Liquid or Gas Flows in Air Sampling Equipment, Chromatography Systems, Desalinization Equipment, Gas Analyzers, Medical Systems, Photo Equipment, Water Treatment and Distribution and in Aquaculture System
Insert
10-32 Threaded Brass
O-Ring
Viton
Flow Range @ GPH of Water
2 to 25
Includes
Valves
Accuracy (%)
+/-3
Output Type
Scaled Pulse
Standards
International Calibration Certificate (ICC), Pressure Equipment Directive (97/23/EC), RoHS
Product Type
Machined Flow Meter
Media Temperature - Maximum
150 Degrees F
O-Ring Material
Viton
Operating Pressure - Maximum
100 psig
Media Temperature - Minimum
40 Degrees F
Flow Rate - Minimum
2 gph
Flowmeter Type
Variable Area
Mounting Orientation
Vertical
Compatible Flow Material
Water
Accuracy
3%
Flow Rate - Maximum
25 gph
Wetted Material
Acrylic, Stainless Steel, Viton
Unit Of Measure
Liters

Description

Mechanical Flowmeter, Product Type Machined Flow Meter, Flowmeter Type Variable Area, Accuracy 3 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Water, Media Temperature - Maximum 150 Degrees F, Media Temperature - Minimum 40 Degrees F, Housing Material Acrylic, O-Ring Material Viton, Seal Material Viton, Shaft Material -, Wetted Material Acrylic, Stainless Steel, Viton

Restrictions

This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
