This item is Discontinued.

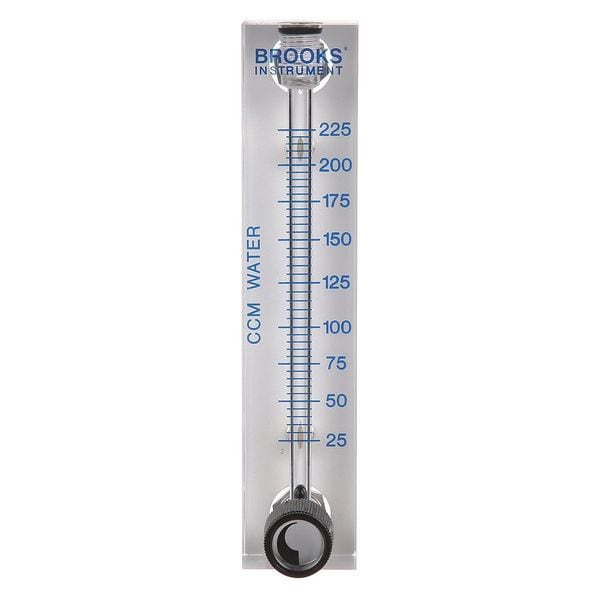

Brooks Meter, Water, 225cc/Minm 2520A4L51SVVT

Meter, Water, 225cc/Minm (Discontinued)

  • Mfr # 2520A4L51SVVT
  • Zoro # G2622067
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2520A4L51SVVT
Zoro #
G2622067
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/8 to 1 in
Connection Size
1/8 in
Width (In.)
1-3/8"
Height (In.)
6-1/2
Connection Size (In.)
1/8 FNPT
Center-Center Insert Size
3 1/2 in
Center-Center Fitting Size
5 1/2
Height
6 1/2 in
Depth
1 1/8 in
Width
1 3/8 in
Overall Width
1.4 in
Overall Height
6.5 in
Overall Length
1.1 in

Details

Item
Mechanical Flowmeter
Housing Material
Acrylic
Type
Variable Area
Flow Material
Water
Connection Type
FNPT
Max. Pressure
100 psi
Wetted Materials
Clear Acrylic, Stainless Steel, Viton
Flow Range
25 to 225 ccm
Fluid Temp. Range
40 Degrees to 150 Degrees F
Fitting
Stainless Steel
Max. Temp. (F)
150
O-Ring
Viton
Insert
10-32 Threaded Brass
Seal Material
Viton
Flow Range @ CCM
25 to 225
Application
For Measuring Liquid or Gas Flows in Air Sampling Equipment, Chromatography Systems, Desalinization Equipment, Gas Analyzers, Medical Systems, Photo Equipment, Water Treatment and Distribution and in Aquaculture System
Includes
Valves
Max. Pressure (PSI)
100
Flow Range @ CCM of Water
25 to 225
Accuracy (%)
+/-3
Standards
International Calibration Certificate (ICC), Pressure Equipment Directive (97/23/EC), RoHS
Output Type
Scaled Pulse
Product Type
Machined Flow Meter
Accuracy
3%
Flowmeter Type
Variable Area
Media Temperature - Maximum
150 Degrees F
Operating Pressure - Maximum
100 psig
Unit Of Measure
Liters
O-Ring Material
Viton
Media Temperature - Minimum
40 Degrees F
Flow Rate - Minimum
25 cfm
Flow Rate - Maximum
225 cfm
Wetted Material
Acrylic, Stainless Steel, Viton
Mounting Orientation
Vertical
Compatible Flow Material
Water

Description

Mechanical Flowmeter, Product Type Machined Flow Meter, Flowmeter Type Variable Area, Accuracy 3 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Water, Media Temperature - Maximum 150 Degrees F, Media Temperature - Minimum 40 Degrees F, Housing Material Acrylic, O-Ring Material Viton, Seal Material Viton, Shaft Material -, Wetted Material Acrylic, Stainless Steel, Viton

Restrictions

This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
