This item is Discontinued.

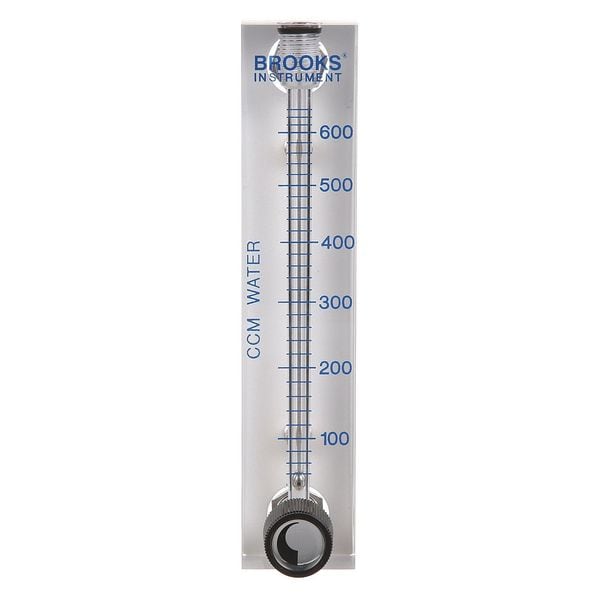

Brooks Meter, Water, 650 Cc/Min 2520A4L52SVVT

Meter, Water, 650 Cc/Min (Discontinued)

  • Mfr # 2520A4L52SVVT
  • Zoro # G2764194
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2520A4L52SVVT
Zoro #
G2764194
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/8 to 1 in
Connection Size
1/8 in
Width
1 3/8 in
Height (In.)
6-1/2
Connection Size (In.)
1/8 FNPT
Center-Center Insert Size
3 1/2 in
Width (In.)
1-3/8"
Center-Center Fitting Size
5 1/2
Depth
1 1/8 in
Height
6 1/2 in
Overall Width
1.4 in
Overall Length
1.1 in
Overall Height
6.5 in

Details

Item
Mechanical Flowmeter
Type
Variable Area
Housing Material
Acrylic
Flow Material
Water
Connection Type
FNPT
Max. Pressure
100 psi
Wetted Materials
Clear Acrylic, Stainless Steel, Viton
Flow Range
40 to 660 ccm
Fitting
Stainless Steel
Fluid Temp. Range
40 Degrees to 150 Degrees F
Flow Range @ CCM of Water
40 to 660
Flow Range @ CCM
40 to 660
Accuracy (%)
+/-3
Seal Material
Viton
Includes
Valves
Max. Pressure (PSI)
100
Max. Temp. (F)
150
O-Ring
Viton
Application
For Measuring Liquid or Gas Flows in Air Sampling Equipment, Chromatography Systems, Desalinization Equipment, Gas Analyzers, Medical Systems, Photo Equipment, Water Treatment and Distribution and in Aquaculture System
Insert
10-32 Threaded Brass
Standards
International Calibration Certificate (ICC), Pressure Equipment Directive (97/23/EC), RoHS
Output Type
Scaled Pulse
Product Type
Machined Flow Meter
Accuracy
3%
Operating Pressure - Maximum
100 psig
O-Ring Material
Viton
Unit Of Measure
Liters
Media Temperature - Minimum
40 Degrees F
Compatible Flow Material
Water
Flow Rate - Maximum
660 cfm
Mounting Orientation
Vertical
Flowmeter Type
Variable Area
Flow Rate - Minimum
40 cfm
Media Temperature - Maximum
150 Degrees F
Wetted Material
Acrylic, Stainless Steel, Viton

Description

Mechanical Flowmeter, Product Type Machined Flow Meter, Flowmeter Type Variable Area, Accuracy 3 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Water, Media Temperature - Maximum 150 Degrees F, Media Temperature - Minimum 40 Degrees F, Housing Material Acrylic, O-Ring Material Viton, Seal Material Viton, Shaft Material -, Wetted Material Acrylic, Stainless Steel, Viton

Restrictions

This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
