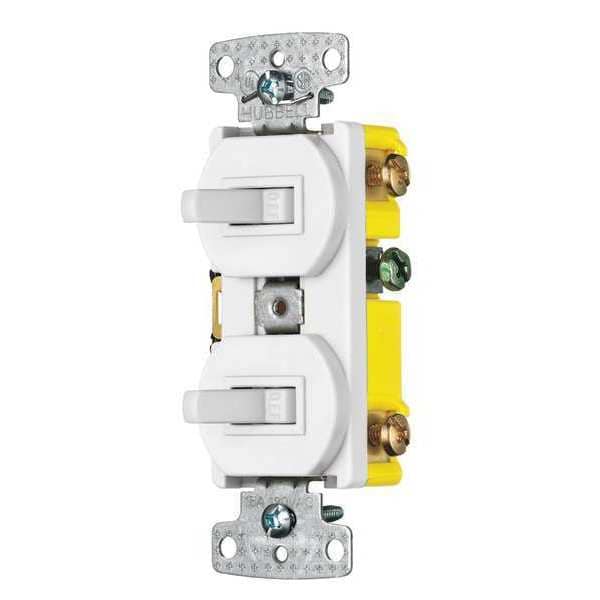

Bryant Combination Device, Duplex Switch Wiring BRYRC101W - main

Combination Device, Duplex Switch Wiring

  • Mfr # BRYRC101W

  • Zoro # G4439989

product price: $11.99
/ea

Key Features

Type
Toggle
NEMA Configuration
5-15R
Amps
15 A
Voltage
120V AC
Wiring Combination
Duplex Switch
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRYRC101W
Zoro #
G4439989
UPC #
883778109799
Country of Origin
China

Dimensions

Overall Width
1.2 in
Mount Hole Center-to-Center Height
3.2 in
Overall Height
4.2 in
Display Size
Standard Size

Details

Item
Combination Device
Type
Toggle
NEMA Configuration
5-15R
Amps
15 A
Voltage
120V AC
Wiring Combination
Duplex Switch
Color
White
Description/Special Features
(2) Single Pole Switches
Standards
UL Listed
Minimum Operating Temperature
-20 Degrees C
Wiring Method
Side
Market
Residential
Switch Function
Maintained
Features
Elongated Strap with Continuous Plaster Ears, Quiet Snap Action Mechanism, Self-Grounding Staple is Standard
Housing Material
Thermoplastic
For Environment
Dry
Maximum Operating Temperature
60 Degrees C
Wire Connection Type
Screw Terminals
Switch Type
Single Pole/Double Throw
Number of Switches
2
Voltage Rating
120V AC
Switch Style
Toggle
Current Rating
15 A
Grounding
Grounded
Item Type
Traditional Switch Combo Devices
Connectivity
Side Wired
Number Of Poles
2) Single Pole
Action
Snap Switch
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Mounting Screws
Wattage
1800
Contact Configuration
Two Position
Operating Cycles
30,000 Minimum
Contact Rating
15A
Performance
Environmental - Operating temperature - -20°C to 60°C
Industry Standard(s)
UL Listed
Application
Residential
Current / Amperage Rating
15 A
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Voltage Rating Description
120 VAC
Actuator
Toggle
Amperage Rating
15 A

Description

Combination Device, Color White, Current Rating 15 A, Switch Function Maintained, Switch Type Single Pole/Double Throw, Voltage Rating 120V AC, Wiring Method Side, Mount Hole Center-to-Center Height 3.2 in, Number of Switches 2, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Features Elongated Strap with Continuous Plaster Ears, Quiet Snap Action Mechanism, Self-Grounding Staple is Standard, For Environment Dry, Grounding Grounded, Housing Material Thermoplastic
