  6. Flanged Locking Inlet, 30 A, 250V AC, Single Phase, 2 Pole, Surface Mount, Screw Terminals, White

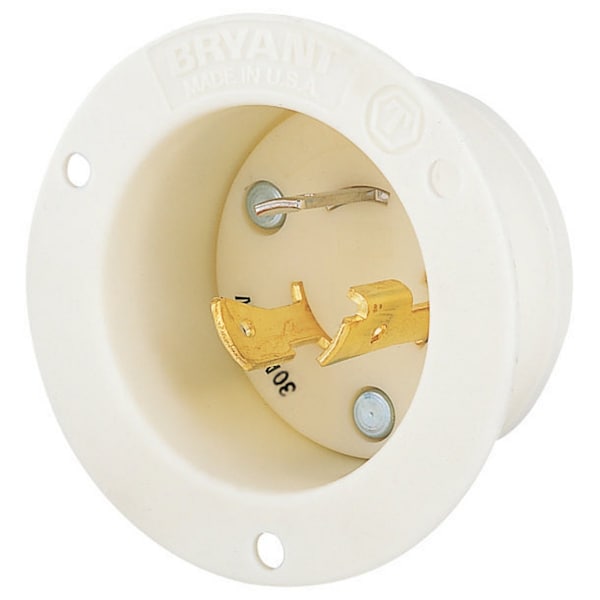

Bryant Flanged Locking Inlet, 30 A, 250V AC, Single Phase, 2 Pole, Surface Mount, Screw Terminals, White 70630MB - main

Flanged Locking Inlet, 30 A, 250V AC, Single Phase, 2 Pole, Surface Mount, Screw Terminals, White

  • Mfr # 70630MB

  • Zoro # G604395226

product price:  $53.56
/ea

Key Features

Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
70630MB
Zoro #
G604395226
UPC #
781786689466
Country of Origin
Puerto Rico

Dimensions

Wire Size
#14 AWG to #8 AWG
Height
2.02 in
Length
2.88 in
Width
2.88 in

Details

Item
Locking Plug
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Surface
Cover Type
No Cover
IP Rating
Not Rated
Resistance Properties
Impact Resistant
Standards
Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
Flange Type
Flanged
Mounting Type
Screw Mounting
Features
Impact resistant thermoplastic construction; Backwired terminations for ease of installation; #10-32 Multiple drive terminal screws; Mounting screws included
Application
Extra Heavy Duty Industrial
Material
Composite
Wiring Style
Equipment Base
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 3500V
Amperage Rating
30 A
Style
Equipment Base
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Insulation
Insulated Body
NEMA Receptacle Configuration
L6-30P

Description

Locking Devices, Industrial, Flanged Inlet, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P, Screw Terminal, White
