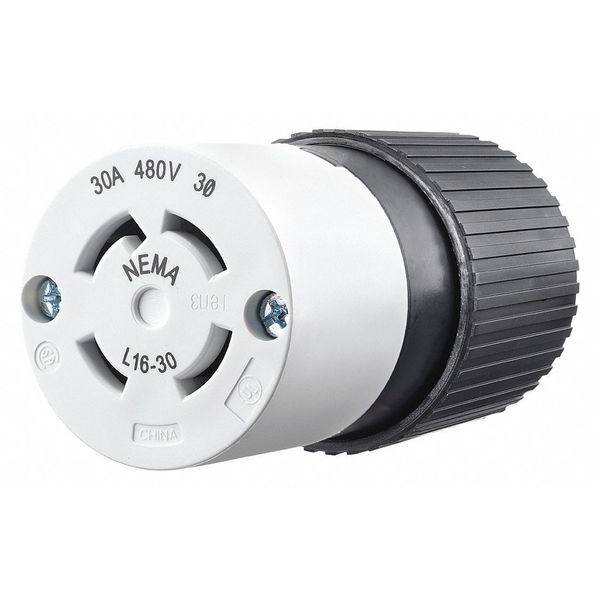

Locking Connector, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White
Mfr # 71630NC
Zoro # G4439788
product price: $66.59
/eaKey Features
NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
71630NC
Zoro #
G4439788
UPC #
781786697195
Country of Origin
China
Dimensions
Cord Size
0.465 in to 1.150 in
Minimum Wire Size
18 AWG
Overall Length
2.13 in
Maximum Wire Size
8 AWG
Height
3.90 in
Width
2.13 in
Wire Size
#18 AWG to #8 AWG
Length
2.13 in
For Minimum Cable Diameter
0.465 in
For Maximum Cable Diameter
1.15 in
Description
Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L16-30R, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Shrouded No, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Grade Industrial, Grounding Grounded, Horsepower Rating 10 hp
