Shop BRYANT

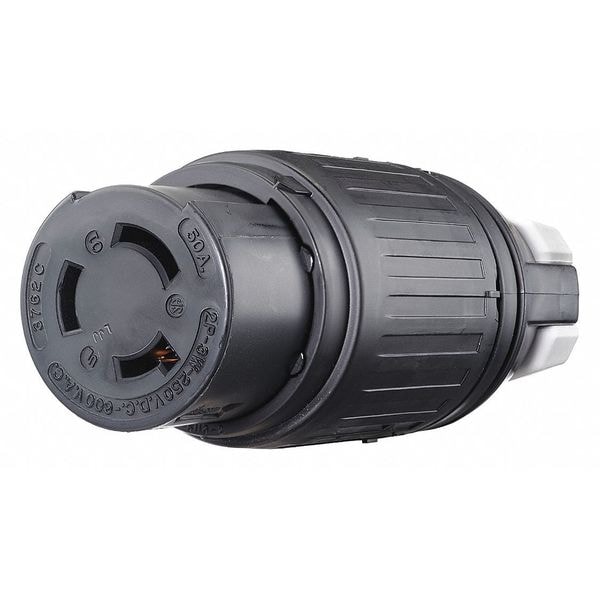

Locking Connector, Non-NEMA, 50 A, 250/600V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # 3762

  • Zoro # G4439955

product price:  $162.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250/600V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3762
Zoro #
G4439955
UPC #
781786652453
Country of Origin
United States

Dimensions

Cord Size
0.830 in to 1.250 in
Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Overall Length
6.5 in
Width
2.56 in
Length
6.50 in
Height
2.56 in
Wire Size
#18 AWG to #8 AWG
For Maximum Cable Diameter
1.25 in
For Minimum Cable Diameter
0.83 in
Wire Rope Length
6.5 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250/600V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
IP Rating
IP20
Material
Nylon
For Environment
Dry
Market
Industrial
Maximum Operating Temperature
167 Degrees F
Midget Locking
No
For Location
Indoor
Housing Material
Composite
Power Indicating Light
No
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Material - Mounting Hardware
Cord Mounted
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Insulation
Insulated Body
Amperage Rating
50 A
Style
Extra Heavy Duty
Application
Heavy Duty Industrial
Conductor Range
#6 AWG
Antimicrobial
No
Power Indicator
No
Series
Twist Lock
Horsepower Rating
7 hp
NEMA Enclosure Rating
Not Rated
Power and Ground Indicating Light
No

Description

Locking Connector, Connection Orientation Straight, Current Rating 50 A, Housing Color Black, White, Housing Material Composite, IP Rating IP20, NEMA Receptacle Configuration Non-NEMA, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Shrouded No, Voltage Rating 250V DC/600V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Grade Industrial, Grounding Grounded, Market Industrial
