  11. Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, White, Yellow

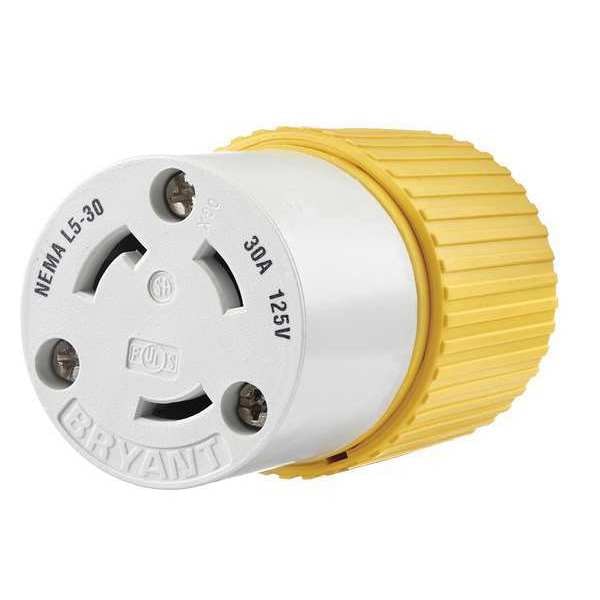

Bryant Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, White, Yellow 70530NCCR - main

Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, White, Yellow

  • Mfr # 70530NCCR

  • Zoro # G4571640

product price: $26.95
/ea

Key Features

NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70530NCCR
Zoro #
G4571640
UPC #
781786688780
Country of Origin
United States

Dimensions

Cord Size
0.300 in to 0.950 in
Minimum Wire Size
18 AWG
Overall Length
2.13 in
Maximum Wire Size
8 AWG
Length
2.13 in
Width
2.13 in
Wire Size
#18 AWG to #8 AWG
Height
3.90 in
For Minimum Cable Diameter
0.30 in
For Maximum Cable Diameter
0.95 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
White, Yellow
Cap Type
No Cap
Standards
CSA Certified, UL Listed
Resistance Properties
Corrosion Resistant
Grade
Industrial
Material
Nylon
Special Features
Corrosion resistant
IP Rating
IP20
Market
Industrial
For Location
Indoor
Midget Locking
No
Maximum Operating Temperature
75 Degrees C
For Environment
Dry
Housing Material
Composite
Power Indicating Light
No
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Application
Heavy Duty Industrial
Amperage Rating
30 A
Features
Nickel-plated copper-alloy metallic components; Molded of impact/chemical resistant high-visibility yellow nylon; Stainless steel screws; Triple Gripper® cord grip on plugs and connectors which feature three captive assembly screws to automatically tighten cord grip; Individual wire pockets with clamp-type terminals
Style
Internal Cord Clamp
Material - Mounting Hardware
Cord Mounted
Conductor Range
#12 AWG to #8 AWG
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Insulation
Insulated Body
Antimicrobial
No
Power Indicator
No

Description

Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color White, Yellow, Housing Material Composite, IP Rating IP20, NEMA Receptacle Configuration L5-30R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Grade Industrial, Grounding Grounded, Market Industrial, Midget Locking No
