Shop HUBBELL WIRING DEVICE-KELLEMS

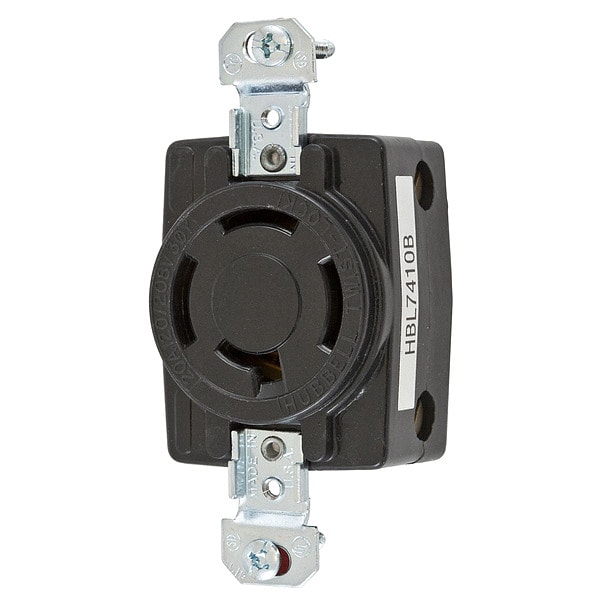

Locking Receptacle, Non-NEMA, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL7410B

  • Zoro # G0437893

product price:
$
53.89
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL7410B
Zoro #
G0437893
UPC #
783585333526
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#16 AWG - #8 AWG solid or stranded copper wire only.
Dimensions
3.61 in x 1.71 in x 1.28 in
Width
1.71 in
Height
1.28 in
Length
3.61 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant
Material
Impact Modified PBT
Mounting Type
Flush Mount
Grade
Industrial
IP Rating
IP20
Special Features
Corrosion resistant
Wiring Style
Standard
Polarized
Yes
Market
Industrial
For Location
Indoor
Contact Material
Brass
Housing Material
Nylon
Number of Gangs
1
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Includes
Mounting Hardware
AFCI
No
NEMA Enclosure Rating
12, 4X
For Environment
Dry
Includes Mounting Hardware
Yes
Shrouded
No
Lock Type
Twist-lock
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Base Material
Nylon Polyester
Spring Material
.040" Brass
Terminal Designations
Terminals identified in accordance with UL 498
Dielectric Strength
Withstands 2,000V minimum
Amperage Rating
20 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Application
Heavy Duty Industrial
Amps
20
UL 94 Flammability Rating
V-2

Description

• High-impact, abuse-resistant nylon face
• Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
• Face color coding by voltage facilitates locating and mating of proper devices
• All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
