  11. Locking Connector, L7-20R, 20 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

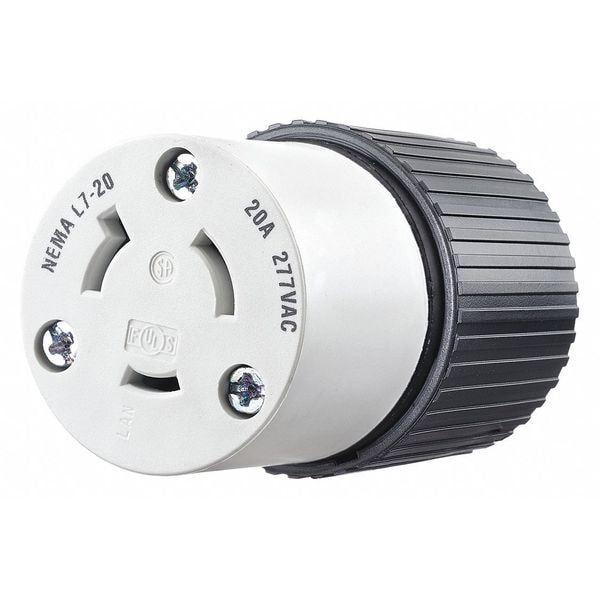

Bryant Locking Connector, L7-20R, 20 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black, White 70720NC - main

Locking Connector, L7-20R, 20 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # 70720NC

  • Zoro # G4439858

product price: $24.47
/ea

Key Features

NEMA Receptacle Configuration
L7-20R
Current Rating
20 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70720NC
Zoro #
G4439858
UPC #
781786690097
Country of Origin
United States

Dimensions

Cord Size
0.300 in to 0.655 in
Overall Length
2.13 in
Minimum Wire Size
18 AWG
Maximum Wire Size
8 AWG
Wire Size
#18 AWG to #8 AWG
Height
3.90 in
Length
2.13 in
For Minimum Cable Diameter
0.30 in
For Maximum Cable Diameter
0.655 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L7-20R
Current Rating
20 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant
IP Rating
IP20
Grade
Industrial
Material
Nylon
Maximum Operating Temperature
75 Degrees C
Power Indicating Light
No
Midget Locking
No
For Location
Indoor
Housing Material
Nylon
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Polarized
Yes
Insulation
Insulated Body
Features
Face and body feature alignment keys for easy assembly; Amperage, voltage and NEMA configuration imprinted on face for easy identification; Impact/chemical resistant, toughened nylon construction; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention
Style
Internal Cord Clamp
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Application
Heavy Duty Industrial
Conductor Range
#14 AWG to #12 AWG
Material - Mounting Hardware
Cord Mounted
Amperage Rating
20 A
Antimicrobial
No
Power Indicator
No

Description

Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L7-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Shrouded No, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Grade Industrial, Grounding Grounded, Market Industrial
