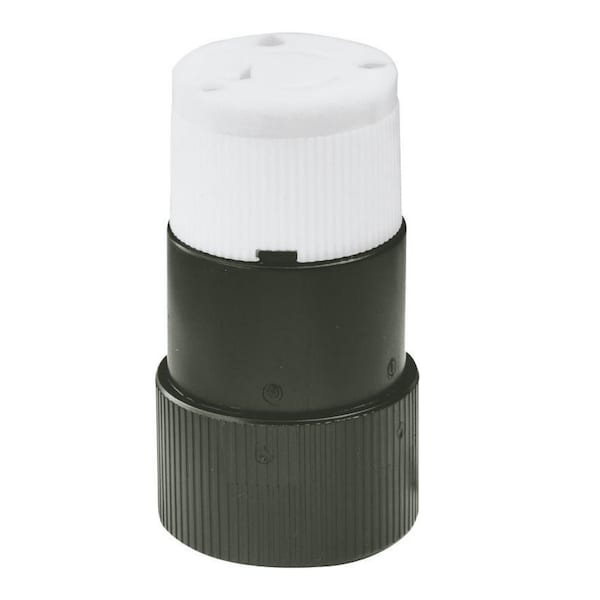

Bryant Locking Connector, Non-NEMA, 20 A, 250V AC, Single Phase, 3 Pole, Screw Terminals, Black 7314 - main

Locking Connector, Non-NEMA, 20 A, 250V AC, Single Phase, 3 Pole, Screw Terminals, Black

  • Mfr # 7314

  • Zoro # G404391978

product price:  $61.15
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7314
Zoro #
G404391978
UPC #
781786628106
Country of Origin
Puerto Rico

Dimensions

Wire Size
#18 AWG to #8 AWG
Length
2.11 in
Height
3.73 in
For Maximum Cable Diameter
1 in
For Minimum Cable Diameter
0.375 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Non-Grounded
Housing Color
Black
Cap Type
No Cap
Standards
CSA Certified to CSA C22.2 No.42, File 31943
IP Rating
Not Rated
Material
Composite
Application
Heavy Duty Industrial
Material - Mounting Hardware
Cord Mounted
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Style
Internal Cord Clamp
Insulation
Insulated Body
Amperage Rating
20 A
Conductor Range
#14 AWG to #12 AWG

Description

Locking Devices, Industrial, Female Connector Body, 20A 250V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
