Shop BRYANT

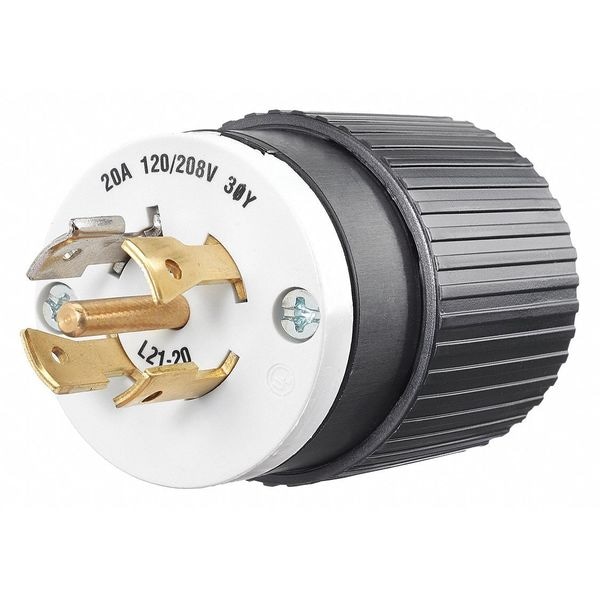

Locking Plug, L21-20P, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # 72120NP

  • Zoro # G4439550

product price:
$
34.89
/ea

Key Features

NEMA Plug Configuration
L21-20P
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
72120NP
Zoro #
G4439550
UPC #
781786701328
Country of Origin
United States

Dimensions

Cord Size
0.465 in to 1.150 in
Outside Diameter
2.13 in
Body Length
2.13 in
For Maximum Cable Diameter
1.15 in
Minimum Wire Size
18 AWG
Maximum Wire Size
8 AWG
For Minimum Cable Diameter
0.465 in
Face Diameter
1.89 in
Wire Size
#18 AWG to #8 AWG
Length
2.13in
Height
2.86 in
Width
2.13 in
Wire Rope Length
2.13 in
Overall Length
2.13 in

Details

Item
Locking Plug
NEMA Plug Configuration
L21-20P
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Standards
NEMA WD-1, NEMA WD-5, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
IP Rating
IP20
Grade
Industrial
Material
Nylon
Application
Extra Heavy Duty Industrial
Polarized
Yes
Housing Material
Nylon
Horsepower Rating
2 hp
For Location
Indoor
For Environment
Dry
Market
Industrial
Features
Hand grip features wide-rib, non-slip design; Configuration-specific plug face surrounds blades to prevent infiltration of contaminants; Captive, combination Slot/Phillips assembly screws; Double wall construction for extra durability; Neutral blade is nickel-plated for easy identification; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention
Amperage Rating
20 A
Style
Internal Cord Clamp
Material - Mounting Hardware
Cord Mounted
Antimicrobial
No
Amps
20
Midget Locking
No
Power and Ground Indicating Light
No
Series
Twist Lock

Description

Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L21-20P, Number of Blades 5, Number of Poles 4, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 120/208V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.89 in, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.465 in, Grade Industrial
