Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Plug, 5-15P, 15 A, 125V, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL8215CAT

  • Zoro # G0606401

product price:
$
29.55
/ea

Key Features

NEMA Plug Configuration
5-15P
Voltage Rating
125V
Phase
Single
Number of Poles
2
Number of Blades
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL8215CAT
Zoro #
G0606401
UPC #
783585179254
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.25 in
Cord Size
0.250 in to 0.660 in
Wire Size
#18 AWG to #10 AWG
Cord Dia. Range
0.250-0.655 (6.4-16.6)
Minimum Wire Size
18 AWG
Body Length
1.53 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Grounded
Housing Color
Clear
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Number of Wires
3
HP
0.5 hp
Antimicrobial
No
NEMA Plug Configuration - Plugs and Receptacles
5-15P
Material
polycarbonate
Grade
Hospital Grade
Color
Transparent
Special Features
Corrosion resistant
Grade - Plugs and Receptacles
Hospital
Corrosion Resistant
Yes
Voltage
125VAC
Phase - Plugs and Receptacles
1
Type
Plug
Amperage
15 A
Dielectric Strength
Withstands 2,000V minimum
Nema Rating
5-15P
Style
Insulgrip
Series
Hospital Grade
Carton Quantity
10
Brand
Hubbell Wiring Device-Kellems
Number Of Wires
3-Wire
Maximum Horsepower
0.5
Minimum Operating Temperature
-40 Degrees F
Housing Material Finish
Nickel Plated
Insulation Material
Polycarbonate
Polarized
Yes
UL 94 Flammability Rating
HB
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1/2 hp
Housing Material
Polycarbonate
Operating Temp.
Maximum continuous 75°C; minimum -40°C (w/o impact)
Weight (Lbs.)
0.15
Connector Type
Insulgrip
Flammability
UL 94 HB or better
Body Style
Angled

Description

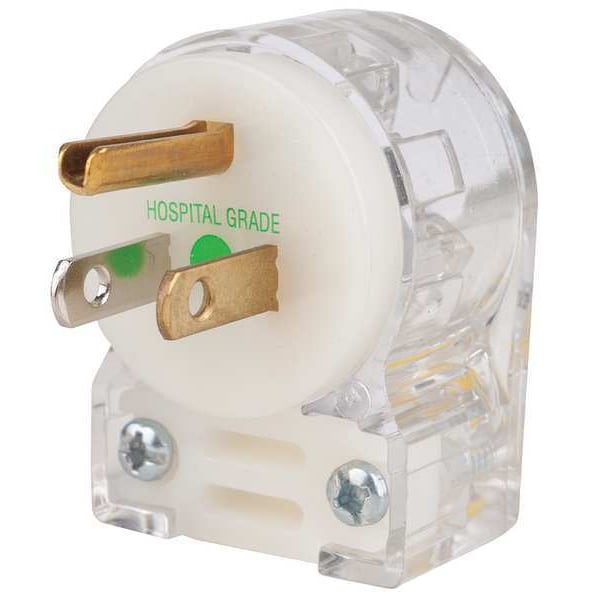

The HUBBELL 3 Wire Angle Straight Blade Plug is a hospital grade Insulgrip plug rated for operation at 125VAC, up to 15A.


Key Features of the HUBBELL Hospital Grade Insulgrip Plug:

  • Amperage/Voltage: Rated for 15 A and 125 V AC operation

  • NEMA Configuration: 5-15P, grounded, polarized design

  • Wire Accommodation: Accepts #18 AWG to #10 AWG wire sizes via screw terminals

  • Cord Diameter Range: Suitable for cords from 0.250 in to 0.655 in diameter

  • Body Style: Angled connection orientation with a body length of 1.53 in

  • Material & Housing: Clear polycarbonate housing; nickel-plated finish; corrosion resistant properties

  • Grade & Standards: Hospital grade; meets CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, UL 498 File E1706 standards

  • Operating Temperature Range: -40°F minimum to +167°F maximum continuous use (75°C)

  • Number of Poles/Wires/Blades: Two-pole, three-wire configuration with three blades

The HUBBELL Hospital grade Insulgrip plug rated for operation at 125VAC, up to 15A.


features individual wiring terminals that are enclosed


offsetting cord grips designed to clamp onto individual conductors


allows for visual inspection of terminations


nickel-plated finish
