Shop BRYANT

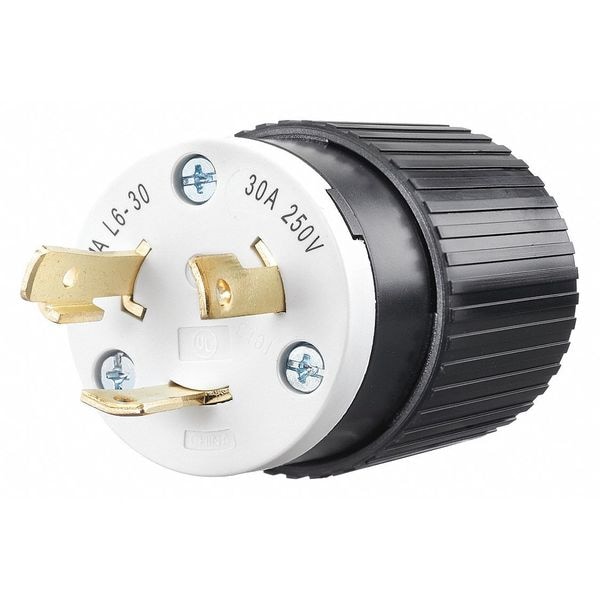

Locking Plug, L6-30P, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # 70630NP

  • Zoro # G4439648

product price:  $23.80
/ea

Key Features

NEMA Plug Configuration
L6-30P
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
70630NP
Zoro #
G4439648
UPC #
781786689527
Country of Origin
China

Dimensions

Cord Size
0.300 in to 0.950 in
Body Length
2.13 in
Face Diameter
1.89 in
For Maximum Cable Diameter
0.95 in
Minimum Wire Size
18 AWG
Outside Diameter
2.13 in
For Minimum Cable Diameter
0.30 in
Maximum Wire Size
8 AWG
Length
2.13 in
Wire Size
#18 AWG to #8 AWG
Height
2.86 in
Width
2.13 in
Wire Rope Length
2.13 in
Overall Length
2.13 in

Details

Item
Locking Plug
NEMA Plug Configuration
L6-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Standards
NEMA WD-1, NEMA WD-5, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
IP Rating
IP20
Grade
Industrial
Application
Extra Heavy Duty Industrial
Housing Material
Composite
Market
Industrial
Polarized
Yes
For Location
Indoor
Horsepower Rating
2 hp
For Environment
Dry
Features
Hand grip features wide-rib, non-slip design; Configuration-specific plug face surrounds blades to prevent infiltration of contaminants; Captive, combination Slot/Phillips assembly screws; Double wall construction for extra durability; Neutral blade is nickel-plated for easy identification; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention
Amperage Rating
30 A
Style
Internal Cord Clamp
Material - Mounting Hardware
Cord Mounted
Antimicrobial
No
Amps
30
Series
Twist Lock
Midget Locking
No
Power and Ground Indicating Light
No

Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Composite, NEMA Plug Configuration L6-30P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.89 in, For Maximum Cable Diameter 0.95 in, For Minimum Cable Diameter 0.3 in, Grade Industrial, Grounding Grounded
