  6. Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

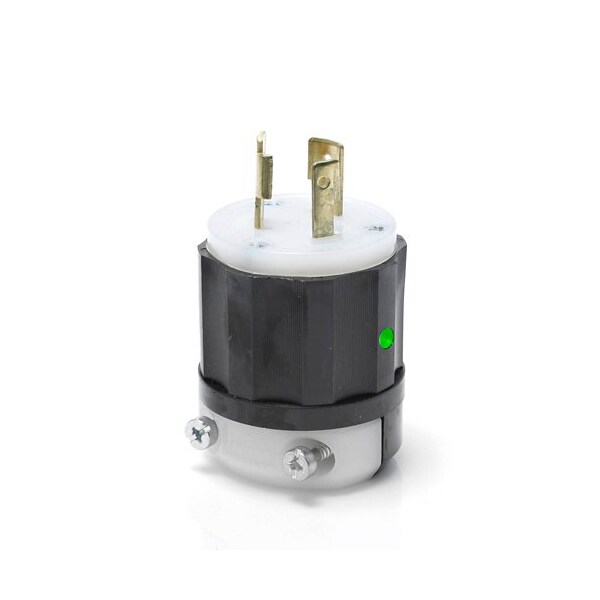

Leviton Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White 2311-PLC - main

Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # 2311-PLC

  • Zoro # G204255999

product price:  $35.39
/ea

Key Features

NEMA Plug Configuration
L5-20P
Current Rating
20 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2311-PLC
Zoro #
G204255999
UPC #
07847707502
Country of Origin
Mexico

Dimensions

Cord Size
0.68 in to 10.125 in
Face Diameter
1.84 in
For Maximum Cable Diameter
0.78 in
Body Length
2.47 in
Minimum Wire Size
16 AWG
Outside Diameter
2.08 in
Maximum Wire Size
10 AWG
For Minimum Cable Diameter
0.385 in

Details

Item
Locking Plug
NEMA Plug Configuration
L5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498 File E13393, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Material
Impact Modified Nylon
IP Rating
Not Rated
Body Material
Impact Modified Nylon
Grade
Federal Specification
Special Features
Chemical Resistant, Long Lasting Reliability, Resists Impact, Rough Use, Sunlight, Unique Cord Clamp
Power Indicating Light
Yes
Maximum Operating Temperature
140 Degrees F
For Environment
Dry
Minimum Operating Temperature
-40 Degrees C
Polarized
Yes
Blade Material
Brass
Market
Industrial
Housing Material
Nylon
Horsepower Rating
1 hp
Midget Locking
No
Flammability
Rated HB or better UL94

Description

Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.84 in, For Maximum Cable Diameter 0.78 in, For Minimum Cable Diameter 0.385 in, Grade General Use, Grounding Grounded
