Shop BRYANT

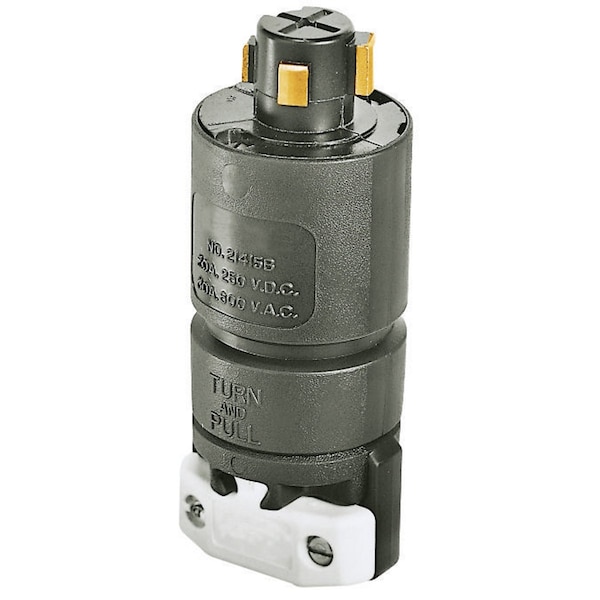

Locking Plug, Non-NEMA, 30 A, 250/600V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # 21415
  • Zoro # G904395193
product price:
$
191.99
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
Non-NEMA
Current Rating
30 A
Voltage Rating
250V AC, 600V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
21415
Zoro #
G904395193
UPC #
781786618619
Country of Origin
Puerto Rico
Item
Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
30 A
Voltage Rating
250V AC, 600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black, White
Standards
ANSI/UL 498 File E17740, CSA Certified C22.2 No. 42, NSF/ANSI/3-A 14159-1
Resistance Properties
resistant to damage
Application
Extra Heavy Duty Industrial
Material
Composite
Cord Type
All Listed Portables
Wattage
18000
Material - Mounting Hardware
Cord Mounted
Style
Grounding
Features
Molded-in male contacts are resistant to damage and provide a consistently positive connection; Insulated non-metallic housing enhances safety and abuse resistance; Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability; Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust

Dimensions

Length
2.33in
Wire Size
#10 AWG to #6 AWG
Width
2.33 in
Height
5.62 in
For Minimum Cable Diameter
0.7 in
For Maximum Cable Diameter
1.2 in

Description

Locking Devices, Bryant Power Interrupting, Industrial, Male Plug, 30A 250V DC/600V AC, 3-Pole 4-Wire Grndng, Non-NEMA, Screw Terminal and White
