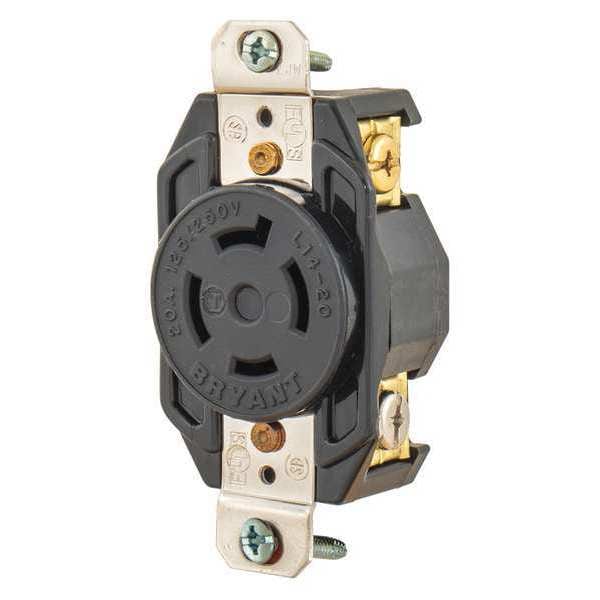

Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals

Mfr # 71420FR
Zoro # G4439395

32.87

Key Features

NEMA Receptacle Configuration

L14-20R

Current Rating

20 A

Voltage Rating

125/250V AC

Phase

Single

Number of Poles

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 71420FR
Zoro #: G4439395
UPC #: 781786695139
Country of Origin: United States

Dimensions

Minimum Wire Size: 14 AWG
Maximum Wire Size: 8 AWG
Wire Size: #14 AWG to #8 AWG
Length: 3.28 in
Width: 1.70 in
Height: 1.14 in
For Maximum Cable Diameter: 0.655 in
For Minimum Cable Diameter: 0.3 in
Mount Hole Center-to-Center Height: 3.28 in

Details

Item: Locking Receptacle
NEMA Receptacle Configuration: L14-20R
Current Rating: 20 A
Voltage Rating: 125/250V AC
Phase: Single
Number of Poles: 3
Number of Wires: 4
Wire Connection Type: Screw Terminals
Grounding: Grounded
Housing Color: Black
Mount Type: Flush
Cover Type: No Cover
Flange Type: Non-Flanged
Standards: UL 498
Resistance Properties: Corrosion Resistant
Grade: Industrial
Wiring Style: Standard
Material: Nylon
Mounting Type: Flush Mount
For Environment: Dry
Includes Mounting Hardware: Yes
Includes: Mounting Hardware
Housing Material: Nylon
For Location: Indoor
Polarized: Yes
Contact Material: Copper Alloy
Shrouded: No
Horsepower Rating: 2 hp
Market: Industrial
Application: Extra Heavy Duty Industrial Specification Grade
Style: Single Receptacle
Material - Mounting Hardware: Screw Mounting
Amperage Rating: 20 A
Features: Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors; Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly; NEMA rating and configuration are molded into face for easy identification; One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
Amps: 20
IP Rating: Not Rated
Midget Locking: No
Connection Orientation: Straight
Flange Material: Composite
NEMA Enclosure Rating: Not Rated
Number of Gangs: 3
Hub Type: Dead End
Series: Twist Lock
Number of Outlets: 1

Description

Locking Receptacle, Current Rating 20 A, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration L14-20R, Number of Poles 3, Number of Wires 4, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Copper Alloy, Grade Industrial, Grounding Grounded
