  11. Locking Receptacle, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals

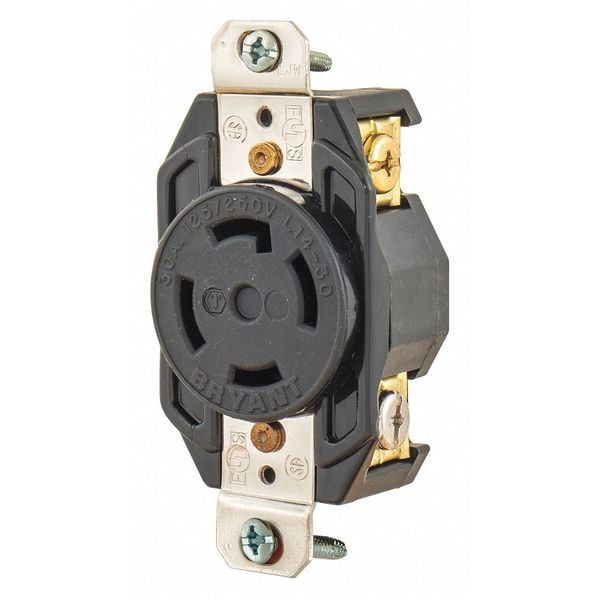

Bryant Locking Receptacle, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals 71430FR - main

Locking Receptacle, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals

  • Mfr # 71430FR

  • Zoro # G4439386

product price: $50.13
/ea

Key Features

NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71430FR
Zoro #
G4439386
UPC #
781786695337
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
14 AWG
Wire Size
#14 AWG to #8 AWG
Length
3.28 in
Width
1.70 in
Height
1.24 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Standards
UL 498
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Grade
Industrial
Mounting Type
Flush Mount
Material
Nylon
Wiring Style
Standard
Includes Mounting Hardware
Yes
Contact Material
Copper Alloy
For Environment
Dry
Housing Material
Composite
Market
Industrial
Includes
Mounting Hardware
For Location
Indoor
Polarized
Yes
Horsepower Rating
2 hp
Material - Mounting Hardware
Screw Mounting
Style
Single Receptacle
Amperage Rating
30 A
Application
Extra Heavy Duty Industrial Specification Grade
Features
Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors; Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly; NEMA rating and configuration are molded into face for easy identification; One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
Amps
30

Description

Locking Receptacle, Current Rating 30 A, Housing Color Black, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration L14-30R, Number of Poles 3, Number of Wires 4, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Copper Alloy, Grade Industrial, Grounding Grounded
