  11. Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

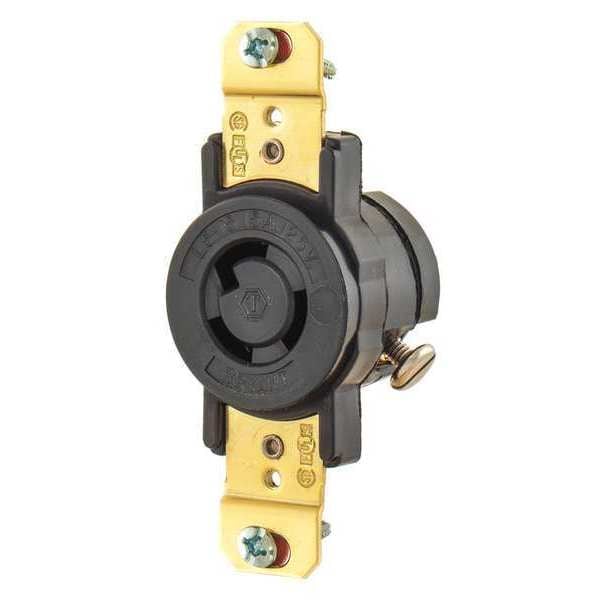

Bryant Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals 4710 - main

Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # 4710

  • Zoro # G4439508

product price: $20.63
/ea

Key Features

NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4710
Zoro #
G4439508
UPC #
781786174016
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
14 AWG
Wire Size
#14 AWG to #8 AWG
Width
1.41 in
Length
3.28 in
Height
1.01 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
Not Rated
Standards
CSA Certified, UL Listed
Resistance Properties
Moisture Resistant
Flange Type
Non-Flanged
Wiring Style
Standard
Material
Reinforced Thermoplastic Polyester/Nylon
Mounting Type
Flush Mount
Grade
Industrial
Polarized
Yes
For Environment
Dry
Market
Industrial
Contact Material
Brass
Horsepower Rating
1/2 hp
For Location
Indoor
Housing Material
Composite
Material - Mounting Hardware
Screw Mounting
Application
Extra Heavy Duty Industrial Specification Grade
Features
Reinforced thermoplastic construction; Single piece, all brass contacts; All terminals are back and side wired; Brass mounting strap with stainless steel grounding clip
Amperage Rating
15 A
Style
Single Receptacle
Amps
15

Description

Locking Receptacle, Current Rating 15 A, Housing Color Black, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration L5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Grade Industrial, Grounding Grounded
