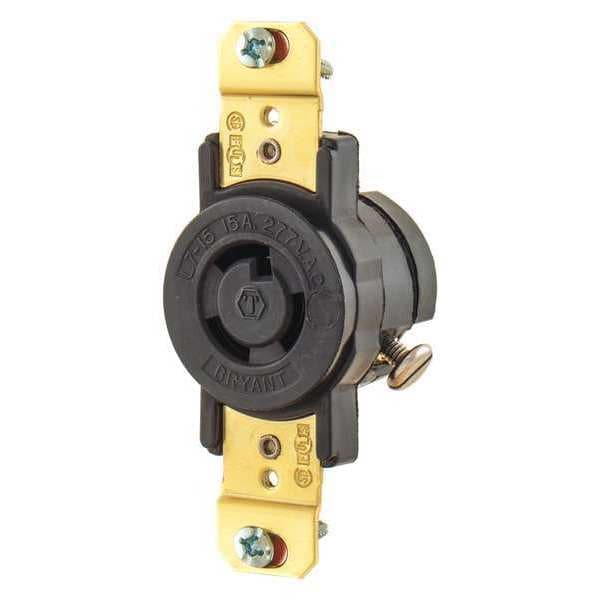

Locking Receptacle, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # 4760

  • Zoro # G4439499

product price:
$
22.25
/ea

Key Features

NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4760
Zoro #
G4439499
UPC #
781786623323
Country of Origin
United States
Item
Locking Receptacle
NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA Certified, UL Listed
Resistance Properties
Moisture Resistant
Material
Reinforced Thermoplastic Polyester/Nylon
Mounting Type
Flush Mount
Wiring Style
Standard
Grade
Industrial
Shrouded
No
For Location
Indoor
For Environment
Dry
Horsepower Rating
1/2 hp
Contact Material
Brass
Market
Industrial
Housing Material
Composite
Polarized
Yes
Style
Single Receptacle
Material - Mounting Hardware
Screw Mounting
Application
Extra Heavy Duty Industrial Specification Grade
Features
Reinforced thermoplastic construction; Single piece, all brass contacts; All terminals are back and side wired; Brass mounting strap with stainless steel grounding clip
Amperage Rating
15 A
Amps
15
Series
Twist Lock
Hub Type
Dead End
Number of Outlets
1
IP Rating
Not Rated
NEMA Enclosure Rating
Not Rated
Connection Orientation
Straight
Midget Locking
No
Flange Material
Composite
Number of Gangs
4

Description

Locking Receptacle, Current Rating 15 A, Housing Color Black, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration L7-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Grade Industrial, Grounding Grounded
