Shop LEVITON

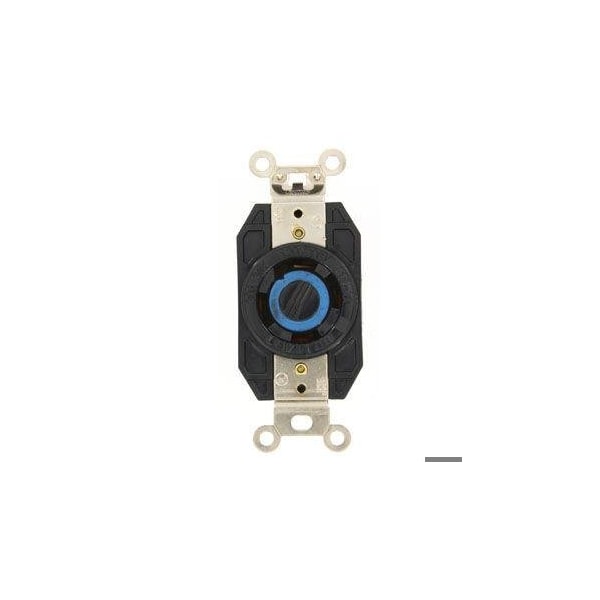

Flanged Locking Receptacle, L18-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Black

  • Mfr # 2750

  • Zoro # G516090189

product price:
$
68.29
/ea

Key Features

NEMA Receptacle Configuration
L18-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Single
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2750
Zoro #
G516090189
UPC #
-
Country of Origin
Mexico

Dimensions

Face Plate Height
2.67 in
Maximum Wire Size
8 AWG
Overall Depth
1.31 in
Mount Hole Center-to-Center Height
3.75 in
Face Diameter
1.56 in
Face Plate Width
1.69 in
Minimum Wire Size
14 AWG

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L18-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Single
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
Flange Type
Non-Flanged
Standards
ANSI C-73, CSA: C22.2 No. 42, NEMA WD-1 and WD-6, NOM 57, UL 498, UL FED SPEC W-C-596
NEMA Enclosure Rating
Not Rated
Shrouded
Yes
Wiring Style
Standard
Polarized
Yes
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees C
Housing Material
Nylon
Number of Gangs
1
Market
Industrial
Contact Material
Brass
Connection Orientation
Straight
For Environment
Corrosive
Horsepower Rating
1 hp
Cover Type
No Cover
UL 94 Flammability Rating
V-0
Number of Outlets
2
Series
Hubbell-PRO
IP Rating
Not Rated
Hub Type
Dead End
Midget Locking
No

Description

Flush Mtg Locking Receptacle,Black
