  11. Pin & Sleeve Plug, 30 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA Not Rated

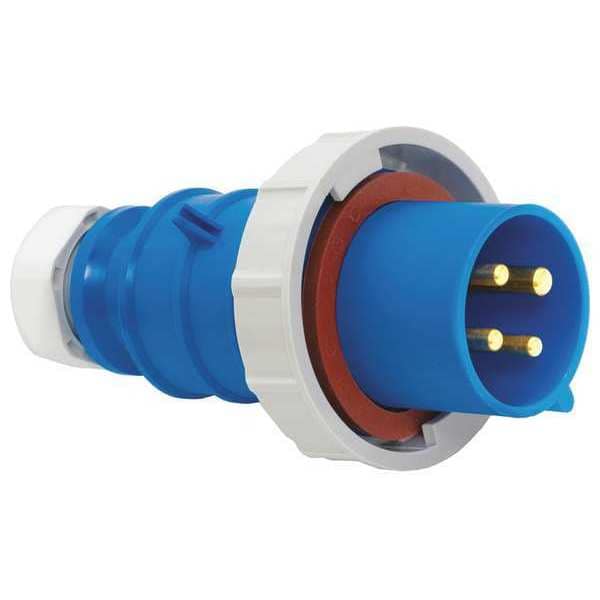

Bryant Pin & Sleeve Plug, 30 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA Not Rated BRY430P9W - main

Pin & Sleeve Plug, 30 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA Not Rated

  • Mfr # BRY430P9W

  • Zoro # G4439121

product price: $217.12
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY430P9W
Zoro #
G4439121
UPC #
781786251243
Country of Origin
Germany

Dimensions

Minimum Wire Size
12 AWG
Maximum Wire Size
8 AWG
For Maximum Cable Diameter
1.26 in
Outside Diameter
3.74 in
For Minimum Cable Diameter
0.50 in
Size
Standard
Wire Size
#10 AWG to #8 AWG

Details

Item
Pin & Sleeve Plug
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
IEC 309-1, IEC 309-2, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material - Pin and Sleeve
Nylon
HP
7 1/2 hp
Grounding Style
IEC
Body Material
Nylon
Features
Watertight
Switch Rated
No
Power Indicating Light
No
Horsepower Rating
7 1/2 hp
Housing Material
Non-Metallic
NEMA Enclosure Rating
Not Rated
Shrouded
Yes
Reverse Service
No
Insulation Material
Nylon
Material
Composite
Plug Type
Male Plug
Insulation
Insulated Body
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Ingress Protection
IP67
Industry Standard(s)
All constructions are UL Listed & cUL Listed, FileE14633, UL1686 Standard for Pin & Sleeve Configurations, VDE, CE
Series
Watertight IP67
Environmental Conditions
IP67
Application
High Ampacity Connections
Dielectric Strength
Withstand 3000V AC
Mounting Type
Cord Mounted

Description

Pin and Sleeve Plug, Current Rating 30 A, Horsepower Rating 7 1/2 hp, Housing Color Orange, Number of Poles 3, Number of Wires 4, Phase Three, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, Connection Orientation Straight, For Maximum Cable Diameter 1.26 in, For Minimum Cable Diameter 0.5 in, Grounding Grounded, Grounding Style IEC, Housing Material Nylon, Maximum Wire Size 8 AWG, Minimum Wire Size 12 AWG, NEMA Enclosure Rating Not Rated
