  11. Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black, White

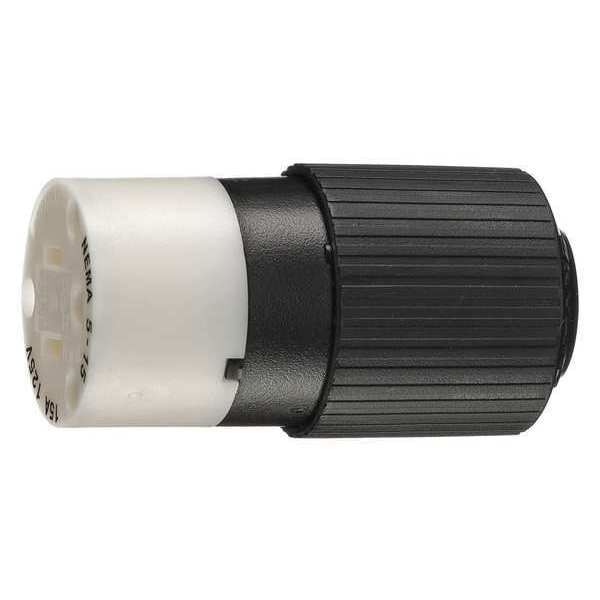

Bryant Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black, White BRY5269NC - main

Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black, White

  • Mfr # BRY5269NC

  • Zoro # G4438990

product price: $24.31
/ea

Key Features

NEMA Receptacle Configuration
5-15R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY5269NC
Zoro #
G4438990
UPC #
00781786005945
Country of Origin
China

Dimensions

Cord Size
0.245 in to 0.655 in
For Maximum Cable Diameter
0.66 in
Minimum Wire Size
14 AWG
For Minimum Cable Diameter
0.3 in
Maximum Wire Size
10 AWG
Display Size
Standard Sized Product
Width
1.52 in
Length
2.95 in
Height
1.38 in

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap or Cover
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
IP Rating
Not Rated
Standards
CSA Certified, UL Listed
Resistance Properties
Moisture Resistant
Special Features
Dust Resistant
Corrosion Resistant
No
Power Indicator
No
Material
Nylon
Grade
Industrial
Antimicrobial
No
Voltage
125VAC
Market
Industrial
Power Indicating Light
No
Housing Material
Nylon
Insulation Material
Nylon
For Location
Indoor
For Environment
Indoor Dry Unless Protected By Additional Means
Grade - Plugs and Receptacles
Industrial
NEMA Plug Configuration - Plugs and Receptacles
5-15R
Application
Extra Heavy Duty Industrial Grade
Series
Industrial
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Nema Rating
5-15R
Insulation
Insulated Body
Number Of Conductors
3-Wire Grounding
Style
Extra Heavy Duty
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Conductor Range
#14 AWG to #10 AWG
Material - Mounting Hardware
Cord Mounted

Description

Straight Blade Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, White, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Moisture Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, For Maximum Cable Diameter 0.66 in, For Minimum Cable Diameter 0.3 in, Grade Industrial, Grounding Grounded, Housing Material Nylon, IP Rating Not Rated, Market Industrial, Maximum Wire Size 10 AWG
