Shop BRYANT

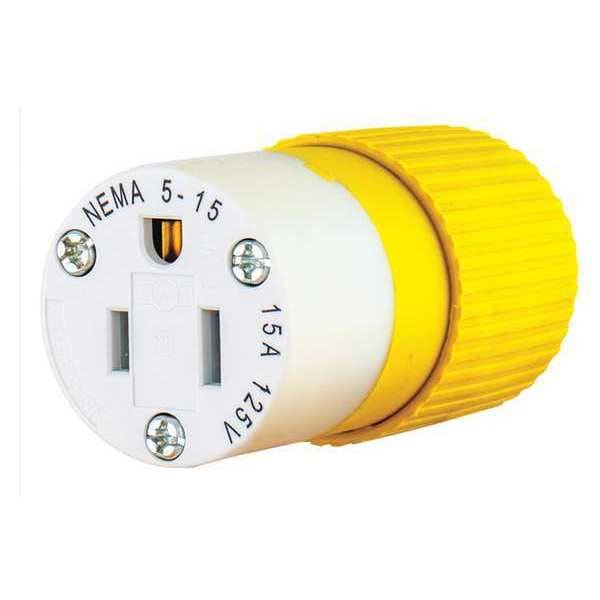

Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow

  • Mfr # BRY5269NCSY

  • Zoro # G4438981

product price:
$
22.69
/ea

Key Features

NEMA Receptacle Configuration
5-15R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
BRY5269NCSY
Zoro #
G4438981
UPC #
00781786134119
Country of Origin
China
Item
Straight Blade Connector
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Yellow
Cap Type
No Cap or Cover
IP Rating
Not Rated
Standards
NEMA WD-1, NEMA WD-5, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Antimicrobial
No
Power Indicator
No
Material
Nylon
Special Features
Corrosion resistant
Grade
Marine
Corrosion Resistant
Yes
Voltage
125VAC
Maximum Operating Temperature
75 Degrees C
Market
Commercial, Industrial
Minimum Operating Temperature
-40 Degrees C
For Environment
Dry
Housing Material
Nylon
For Location
Indoor
Power Indicating Light
No
Grade - Plugs and Receptacles
Marine
NEMA Plug Configuration - Plugs and Receptacles
5-15R
Style
Extra Heavy Duty
Insulation
Insulated Body
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Extra Heavy Duty Industrial Grade
Conductor Range
#14 AWG to #10 AWG
Series
Hubbell Straight Blade
Number Of Conductors
3-Wire Grounding
Nema Rating
5-15R
Material - Mounting Hardware
Cord Mounted
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Horsepower Rating
1/2 hp

Description

Straight Blade Connector, Current Rating 15 A, Housing Color Yellow, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, For Maximum Cable Diameter 0.66 in, For Minimum Cable Diameter 0.25 in, Grade Marine, Grounding Grounded, Housing Material Nylon, IP Rating Not Rated, Market Commercial, Industrial, Maximum Wire Size 10 AWG
