Shop BRYANT

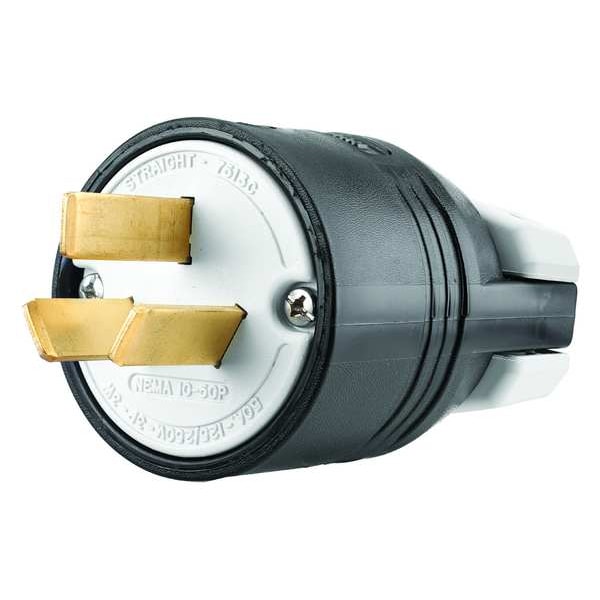

Straight Blade Plug, 10-50P, 50 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded

  • Mfr # 7513NP

  • Zoro # G4438896

product price:  $67.65
/ea

Key Features

NEMA Plug Configuration
10-50P
Current Rating
50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7513NP
Zoro #
G4438896
UPC #
781786732421
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.32 in
For Minimum Cable Diameter
0.425 in
Cord Size
0.425 in to 1.320 in
Body Length
4.13 in
Maximum Wire Size
6 AWG
Wire Size
#6 AWG
Display Size
Standard Sized

Details

Item
Straight Blade Plug
NEMA Plug Configuration
10-50P
Current Rating
50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Non-Grounded
Housing Color
Black
IP Rating
Not Rated
Standards
CSA, UL
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Thermoplastic
Grade
Industrial
HP
2.0 Line to Neutral, 3.0 Line to Line
Corrosion Resistant
No
Phase - Plugs and Receptacles
1
Grade - Plugs and Receptacles
Industrial
NEMA Plug Configuration - Plugs and Receptacles
10-50P
Number of Wires
3
Antimicrobial
No
Special Features
Ergonomic, Fluted Body Design
Voltage
125/250VAC
Horsepower Rating
2 hp, 3 hp
For Location
Indoor
Market
Commercial, Industrial
Insulation Material
Nylon
Housing Material
Thermoplastic
Polarized
Yes
Blade Material
Brass
For Environment
Dry
Application
Heavy Duty; Industrial
Mounting Hardware
Cord Mounted
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wire Gauge
#6 AWG
Cord Type
All Portable
Wattage
12500
Style
Extra Heavy Duty
Material - Mounting Hardware
Cord Mounted
Series
Hubbell Straight Blade
Power Indicating Light
No
Shrouded
Yes

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 50 A, Grounding Non-Grounded, Horsepower Rating 2 hp, 3 hp, Housing Color Black, IP Rating Not Rated, NEMA Plug Configuration 10-50P, Number of Blades 3, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.32 in, For Minimum Cable Diameter 0.425 in
