Shop BRYANT

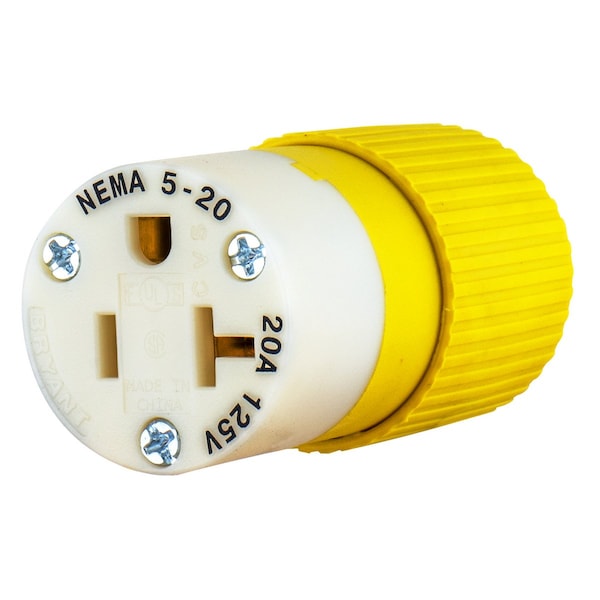

Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow

  • Mfr # BRY5369NCCR
  • Zoro # G604392195
product price:
$
45.29
/ea

Key Features

NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BRY5369NCCR
Zoro #
G604392195
UPC #
781786134140
Country of Origin
China

Dimensions

For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.245 in
Height
1.38 in
Width
1.52 in
Length
2.95 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Display Size
Standard Sized Product

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
Cap Type
No Cap or Cover
Standards
ANSI C-73, CSA C22.2 No. 42, UL 498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
Special Features
Insulated Body
Material
Composite
Grade
Industrial; Extra Heavy Duty
Application
Extra Heavy Duty Industrial Grade
For Environment
Indoor Dry Unless Protected By Additional Means
Grounding Style
Grounding
Maximum Operating Temperature
75 deg C
Minimum Operating Temperature
-40 Degrees C
Number Of Conductors
3-Wire Grounding
Cord Range
0.245"-0.655"
Material - Mounting Hardware
Cord Mounted
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Series
Industrial
Insulation
Insulated Body
Conductor Range
#14 AWG to #10 AWG
Style
Extra Heavy Duty
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Nema Rating
5-20R

Description

Straight Blade Device, Female Connector Body, Corrosion Resistant, Industrial/Commercial Grade, Straight, Corrosion Resistant
