  11. Straight Blade Receptacle, 14-30R, 30 A, 125/250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

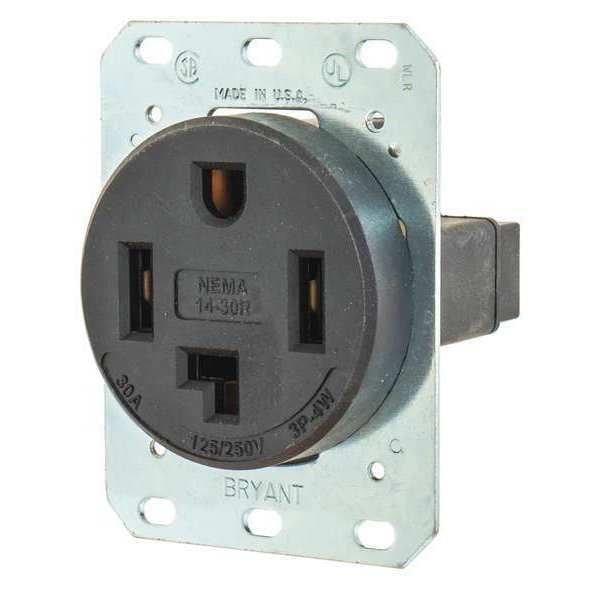

Bryant Straight Blade Receptacle, 14-30R, 30 A, 125/250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded 9430FR - main

Straight Blade Receptacle, 14-30R, 30 A, 125/250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

  • Mfr # 9430FR

  • Zoro # G4438397

product price: $48.69
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9430FR
Zoro #
G4438397
UPC #
781786675933
Country of Origin
United States

Dimensions

Face Plate Width
2.3 in
Minimum Wire Size
10 AWG
Maximum Wire Size
6 AWG
Overall Depth
2.3 in
Face Plate Height
3.7 in
Display Size
Standard Sized Product
Wire Size
#10 AWG to #6 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Voltage
125/250VAC
Tamper Resistant
No
Surge Suppression
No
Application Environment
Industrial
Outlet Type - Plugs and Receptacles
Single
HP
2 hp
Outlet Type
Single
Wiring Method - Plugs and Receptacles
Back and Side
Material
Thermoplastic Polymer
Weather Resistant
No
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
Sub-Category
Single Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
14-30R
Power Indicator
No
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
Corrosion Resistant
No
For Location
Indoor
GFCI
No
Connection Orientation
Straight
Cover Type
No Cover
Grade
General Use
Horsepower Rating
2 hp
Surge Protection
No
Polarized
Yes
AFCI
No
Includes Mounting Hardware
Yes
Market
Commercial, Industrial
Includes
Mounting Hardware
Housing Material
Thermoplastic
Nema Rating
14-30R
Style
Smooth Face
Wattage
7500
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Industrial Grade
Series
Heavy Duty
Material - Mounting Hardware
Screw Mounting

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 30 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 14-30R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Impact Resistant, Standards CSA Certified, UL Listed, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals
