Shop BRYANT

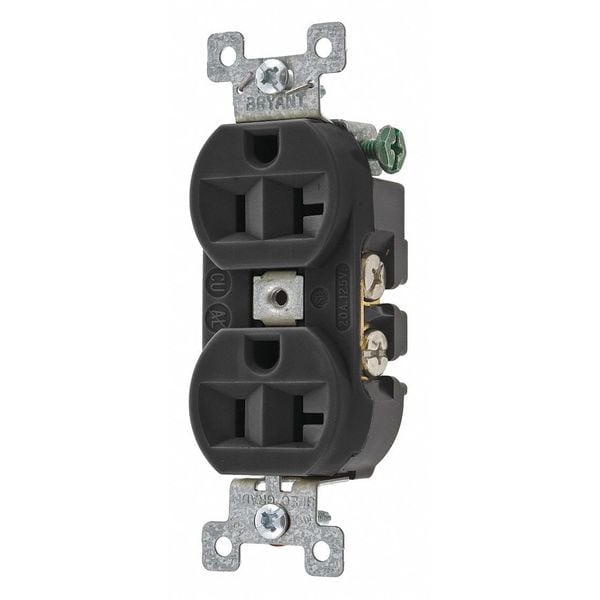

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5362BBLK
  • Zoro # G4819501
product price:
$
7.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5362BBLK
Zoro #
G4819501
UPC #
781786715042
Country of Origin
United States
Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
HP
1 hp
Number of Gangs
1
Material
Nylon
Application Environment
Industrial
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
No
Special Features
Corrosion resistant
Corrosion Resistant
Yes
Tamper Resistant
No
Weather Resistant - Plugs and Receptacles
No
Sub-Category
Duplex Receptacles
Power Indicator
No
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Mounting Type
Flush
Weather Resistant
No
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-20
Outlet Type
Duplex
Outlet Type - Plugs and Receptacles
Standard Duplex
Market
Commercial, Industrial
Hub Type
Feed Through
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Includes
Mounting Hardware
Housing Material
Composite, Thermoplastic
Connection Orientation
Straight
Horsepower Rating
1 hp
For Location
Indoor
Surge Protection
No
Includes Mounting Hardware
Yes
Maximum Operating Temperature
167 Degrees F
Grade
Federal Specification
AFCI
No
GFCI
No
Material - Mounting Hardware
Screw Mounting
Application
Heavy Duty Specification Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
2500
Nema Rating
5-20R
Style
Finder Groove Face
Temperature Rating
Maximum continuous 75°C; minimum -40°C (w/o impact)
Industry Standard(s)
UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
Features
Slender/compact design; Finder Groove Face; Triple wipe contacts
IP Rating
IP20
Number of Wall Plates Included
0
Number of Outlets
2

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Overall Depth
0.9 in
Face Plate Height
2.7 in
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product
Height
0.92 in
Size
Standard Sized Product
Width
1.38 in
Length
3.28 in

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Composite, Thermoplastic/Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Corrosion Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
