  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

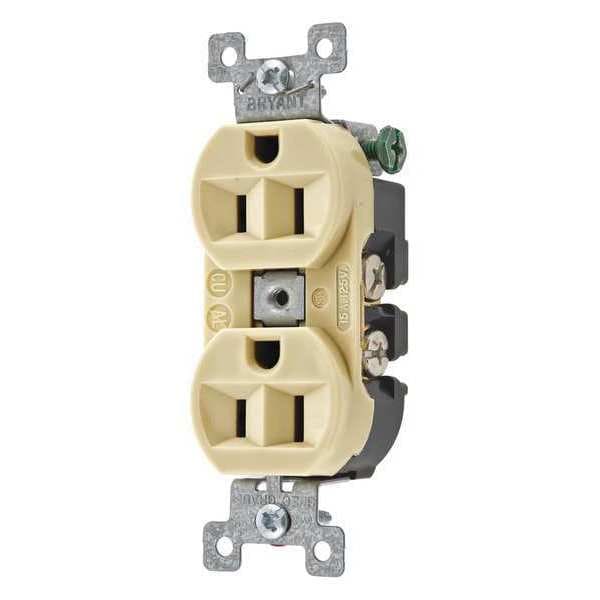

Bryant Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5262BI - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5262BI

  • Zoro # G4438570

product price: $6.25
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5262BI
Zoro #
G4438570
UPC #
781786715080
Country of Origin
United States

Dimensions

Width
1.38 in
Height
0.92 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Overall Depth
0.9 in
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product
Size
Standard Sized Product
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Flush
Material
Nylon
HP
1/2 hp
Outlet Type
Duplex
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type - Plugs and Receptacles
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Tamper Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Application Environment
Industrial
Voltage
125VAC
Sub-Category
Duplex Receptacles
Power Indicator
No
Number of Gangs
1
Surge Suppression
No
Weather Resistant
No
Horsepower Rating
1/2 hp
Market
Commercial, Industrial
GFCI
No
AFCI
No
Includes Mounting Hardware
Yes
Grade
Federal Specification
Includes
Mounting Hardware
Housing Material
Composite, Thermoplastic
Connection Orientation
Straight
Cover Type
No Cover
Surge Protection
No
Polarized
Yes
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Application
Heavy Duty Specification Grade
Wattage
1875
Nema Rating
5-15R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Style
Finder Groove Face
Series
Heavy Duty
Industry Standard(s)
UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
Features
Slender/compact design; Finder Groove Face; Triple wipe contacts
Temperature Rating
Maximum continuous 75°C; minimum -40°C (w/o impact)

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Composite, Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186, Voltage Rating 125V AC
