Shop BRYANT

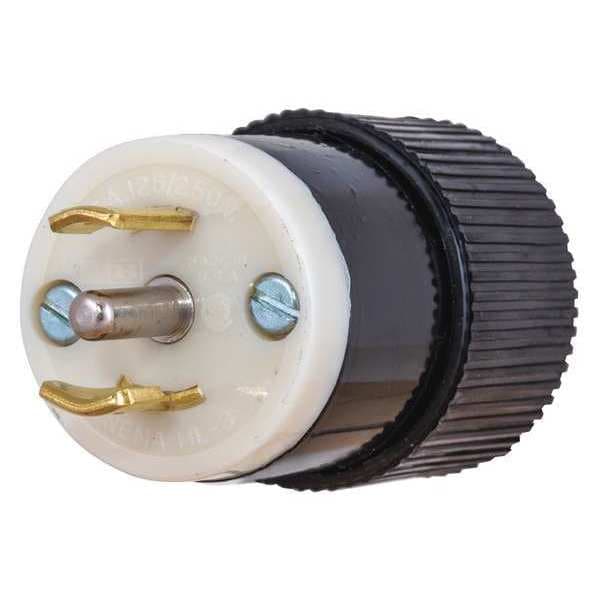

Midget Locking Plug, ML3-15P, 15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals

  • Mfr # 7485NP

  • Zoro # G4439261

product price:  $20.15
/ea

Key Features

NEMA Plug Configuration
ML3-15P
Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7485NP
Zoro #
G4439261
UPC #
781786669406
Country of Origin
United States

Dimensions

Cord Size
0.281 in to 0.625 in
Outside Diameter
1.25 in
Face Diameter
1.12 in
Minimum Wire Size
18 AWG
Body Length
1.25 in
For Minimum Cable Diameter
0.281 in
For Maximum Cable Diameter
0.625 in
Maximum Wire Size
12 AWG
Wire Size
#18 AWG to #12 AWG
Length
1.25in
Width
1.25 in
Height
1.60 in
Overall Length
1.25 in
Wire Rope Length
1.25 in

Details

Item
Midget Locking Plug
NEMA Plug Configuration
ML3-15P
Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Standards
NEMA WD-1, NEMA WD-5, UL 498
Resistance Properties
Shatter and Crack Resistant
Body Material
Nylon
For Use With
Midget Locking Receptacle or Connector
Flange Material
Nylon
Material
Composite
Application
Extra Heavy Duty Industrial
IP Rating
IP20
Housing Material
Composite
Polarized
Yes
Market
Industrial
Midget Locking
Yes
For Location
Indoor
For Environment
Dry
Features
Smaller body size for use in tighter fit applications where larger products can't; Abuse resistant nylon housing
Material - Mounting Hardware
Cord Mounted
Style
Non-Grounding
Amperage Rating
15 A
Amps
15 A
NEMA Configuration
ML3-15
Power and Ground Indicating Light
No
Horsepower Rating
1/2 hp
Series
Twist Lock

Description

Midget Locking Plug, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, White, Housing Material Composite, NEMA Plug Configuration ML3-15P, Number of Blades 3, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Shatter and Crack Resistant, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.12 in, For Maximum Cable Diameter 0.625 in, For Minimum Cable Diameter 0.281 in, Grounding Non-Grounded
