Shop BRYANT

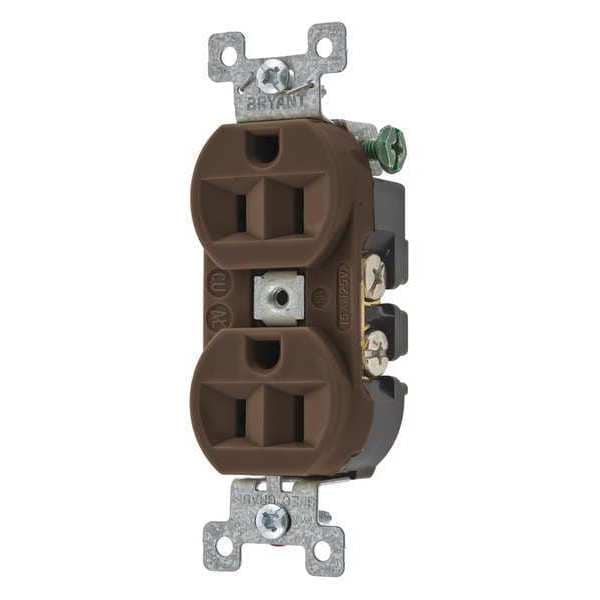

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5262BN

  • Zoro # G4845620

product price:  $6.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5262BN
Zoro #
G4845620
UPC #
781786715110
Country of Origin
United States

Dimensions

Height
0.92 in
Width
1.38 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Overall Depth
0.9 in
Face Plate Height
2.7 in
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product
Size
Standard Sized Product
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
No
HP
1/2 hp
Tamper Resistant
No
Mounting Type
Flush
Material
Nylon
Special Features
Corrosion resistant
Application Environment
Industrial
Weather Resistant
No
Outlet Type
Duplex
Surge Suppression
No
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Corrosion Resistant
Yes
Outlet Type - Plugs and Receptacles
Standard Duplex
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant - Plugs and Receptacles
No
Sub-Category
Duplex Receptacles
GFCI
No
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Housing Material
Composite, Thermoplastic
Includes
Mounting Hardware
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1/2 hp
Surge Protection
No
Includes Mounting Hardware
Yes
Grade
Federal Specification
For Location
Indoor
Hub Type
Feed Through
AFCI
No
Market
Commercial, Industrial
Polarized
Yes
Application
Heavy Duty Specification Grade
Nema Rating
5-15R
Style
Finder Groove Face
Wattage
1875
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Features
Slender/compact design; Finder Groove Face; Triple wipe contacts
Temperature Rating
Maximum continuous 75°C; minimum -40°C (w/o impact)
Industry Standard(s)
UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
Number of Wall Plates Included
0
IP Rating
IP20
Number of Outlets
2

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Composite, Thermoplastic/Composite, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Corrosion Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
