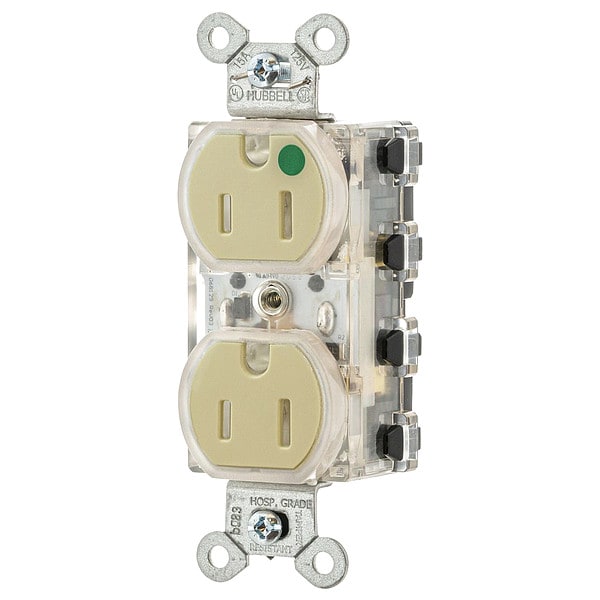

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP8200ILTR

  • Zoro # G606905324

product price:
$
31.49
/ea

Key Features

Receptacle Type
Duplex
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SNAP8200ILTR
Zoro #
G606905324
UPC #
-
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Overall Depth
1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
IP20
Standards
CSA, UL
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Includes
Mounting Screw
UL 94 Flammability Rating
V-2
Contact Material
Brass
Visual Indicator Lights
Power Connected
Market
Industrial
Polarized
Yes
Surge Protection
No
Includes Mounting Hardware
Yes
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
Horsepower Rating
1/2 hp
Number of Outlets
2
Housing Material
Polycarbonate
AFCI
No
Grade
Hospital Grade
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Connection Orientation
Straight
Ground Contacts
Brass
Automatic Self-grounding Staple
Stainless steel
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
Face
Nylon
Mounting Strap
Galvanized steel
Power Contacts
Brass
Base
PBT
Dielectric Voltage
Withstands 2,000V minimum
Current Interrupting
Receptacle certified for current interrupting at full rated current
Device Color
Ivory
Flammability
UL 94V-2
Mounting Screws
Zinc plated steel
Status Indicator Lights
Power Connected

Description

The HUBBELL Hospital Grade SNAPConnect Receptacle is a duplex straight blade receptacle suitable for modular wiring applications in indoor industrial environments. This snapconnect receptacle features a hospital grade rating and allows for efficient installation by utilizing a modular connector that snaps into place; does not require traditional pigtail wiring. It includes an LED indicator to show power connection status and includes tamper-resistant features.


Key Features of the HUBBELL Hospital Grade SNAPConnect Receptacle:

  • Connection Type: Modular wiring with straight orientation intended to facilitate installation and device replacement.

  • Current Rating: Rated for 15 A at 125V AC; listed for use at full rated current interruption per applicable standards.

  • NEMA Configuration: 5-15R duplex outlets with polarized design; supports single phase, two poles, three wires.

  • Tamper Resistant: Features construction intended to limit access to internal contacts.

  • Visual Indicator Lights: Face-mounted LED displays power connection status.

  • Audible Feedback: Produces an audible sound when the connector is engaged during installation.

  • Material Construction: Nylon face, PBT base, polycarbonate housing; brass contacts and ground terminals; galvanized steel mounting strap; stainless steel self-grounding staple; zinc plated steel mounting screws included.

  • Operating Temperature Range: -40°F to 167°F (maximum continuous 75°C).

  • Standards Compliance: CSA and UL listed; meets UL 94V-2 flammability requirements.
