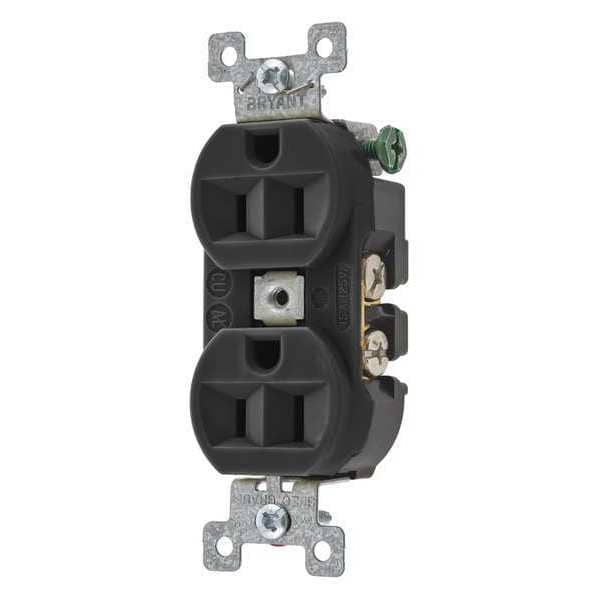

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BRY5262BLK
  • Zoro # G4819556
product price:
$
7.15
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
BRY5262BLK
Zoro #
G4819556
UPC #
781786715103
Country of Origin
United States
Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Application Environment
Industrial
Mounting Type - Plugs and Receptacles
Flush
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Weather Resistant - Plugs and Receptacles
No
Outlet Type
Duplex
Special Features
Corrosion resistant
NEMA Configuration
5-15
HP
1/2 hp
Corrosion Resistant
Yes
Sub-Category
Duplex Receptacles
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Power Indicator
No
Material
Nylon
Weather Resistant
No
Voltage
125VAC
Housing Material
Composite, Thermoplastic
Grade
Federal Specification
Maximum Operating Temperature
167 Degrees F
Cover Type
No Cover
GFCI
No
Market
Commercial, Industrial
Surge Protection
No
Horsepower Rating
1/2 hp
For Location
Indoor
Hub Type
Feed Through
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Includes
Mounting Hardware
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
AFCI
No
Application
Heavy Duty Specification Grade
Style
Finder Groove Face
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Nema Rating
5-15R
Material - Mounting Hardware
Screw Mounting
Wattage
1875
Industry Standard(s)
UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
Temperature Rating
Maximum continuous 75°C; minimum -40°C (w/o impact)
Features
Slender/compact design; Finder Groove Face; Triple wipe contacts
IP Rating
IP20
Number of Outlets
2
Number of Wall Plates Included
0

Dimensions

Width
1.38 in
Height
0.92 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Overall Depth
0.9 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #12 AWG
Length
3.28 in
Size
Standard Sized Product

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Composite, Thermoplastic/Composite, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Corrosion Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
