  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

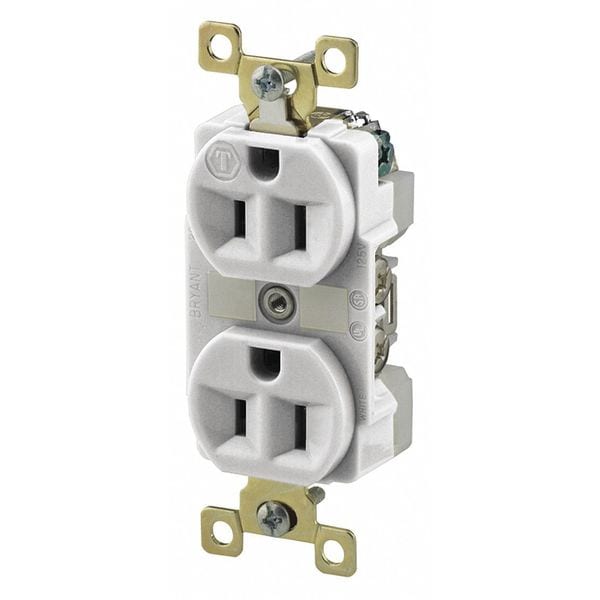

Bryant Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BRY5262W - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BRY5262W

  • Zoro # G4819230

product price: $14.49
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BRY5262W
Zoro #
G4819230
UPC #
781786005075
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Overall Depth
1.2 in
Face Plate Width
1.5 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
12 AWG
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product
Length
3.28 in
Height
1.16 in
Width
1.54 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified, Federal Specification W-C-59, NEMA WD-1 and WD-6, UL 498, UL Listed
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Voltage
125VAC
Mounting Type - Plugs and Receptacles
Flush
Special Features
Corrosion resistant
NEMA Configuration
5-15
Application Environment
Harsh and Heavy Use Industrial
Sub-Category
Duplex Receptacles
Power Indicator
No
HP
1/2 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Outlet Type
Duplex
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Number of Gangs
1
Mounting Type
Flush
Weather Resistant
No
Material
Nylon
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Corrosion Resistant
Yes
Weather Resistant - Plugs and Receptacles
No
Surge Protection
No
Horsepower Rating
1/2 hp
For Location
Indoor
Housing Material
Nylon
Cover Type
No Cover
Polarized
Yes
Connection Orientation
Straight
Contact Material
Brass
Includes
Mounting Hardware
Includes Mounting Hardware
Yes
Grade
Federal Specification
GFCI
No
AFCI
No
Market
Commercial, Industrial
Series
Extra Heavy Duty
Wattage
1875
Material - Mounting Hardware
Screw Mounting
Nema Rating
5-15R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Extra Heavy Duty Industrial Specification Grade
Style
Finder Groove Face

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Corrosion Resistant, Standards CSA Certified, Federal Specification W-C-59, NEMA WD-1 and WD-6, UL 498, UL Listed, Voltage Rating 125V AC
