Shop MOLEX

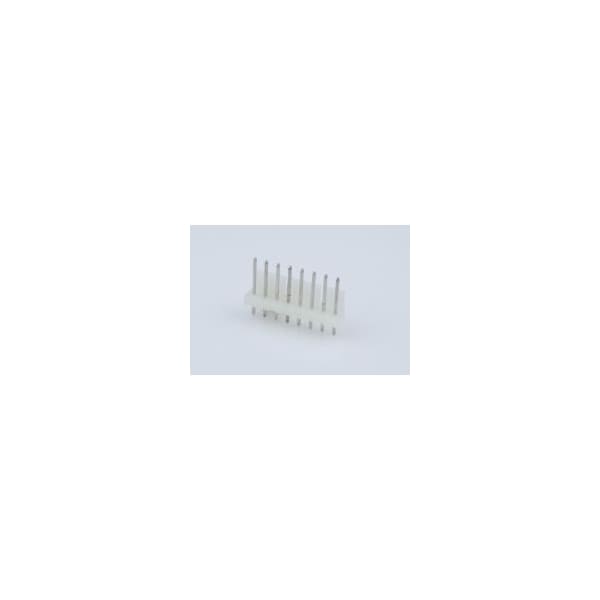

3.96mm KK Hdr Vt Pol-W RPin VrA 8Ckt

  • Mfr # 26-19-2081

  • Zoro # G4049994

product price:  $1.99
/ea
Sold in multiples of 46 for $91.54

Key Features

Max. Cycles at Max. Process Temperature
1
Orientation
Vertical
PCB Thickness - Recommended
1.60mm
CSA
LR19980
Plating min - Termination
5.080µm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
26-19-2081
Zoro #
G4049994
UPC #
-
Country of Origin
India

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
4.45mm

Details

Max. Cycles at Max. Process Temperature
1
Orientation
Vertical
CSA
LR19980
Plating min - Termination
5.080µm
UL
E29179
Material - Plating Mating
Tin
Current - Maximum per Contact
7.0A
Duration at Max. Process Temperature (seconds)
5
Plating min - Mating
5.080µm
Pitch - Mating Interface
3.96mm
Material - Resin
Nylon
Voltage - Maximum
250V
Material - Metal
Brass
Shrouded
Partial
Termination Interface: Style
Through Hole
Circuits (Loaded)
8
Circuits (maximum)
8
Pitch - Termination Interface
3.96mm
Flammability
94V-2
Number of Rows
1
Material - Plating Termination
Tin
Durability (mating cycles max)
25
Color - Resin
Natural
Process Temperature max. C
235
