  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

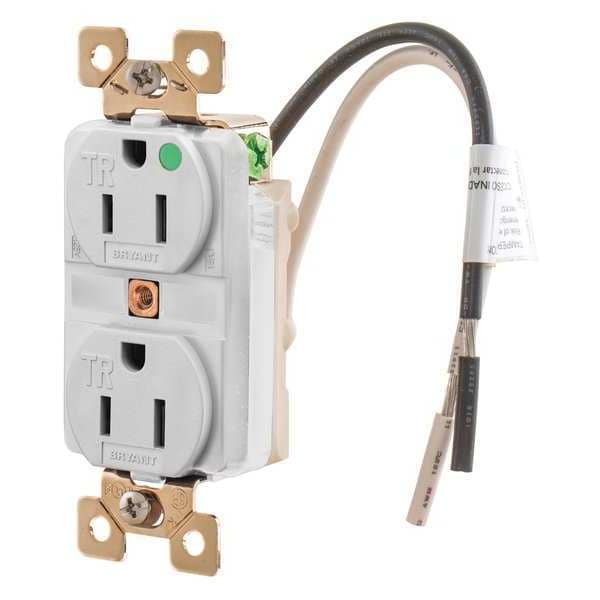

Bryant Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BRY8200WTR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BRY8200WTR

  • Zoro # G4845331

product price: $24.13
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY8200WTR
Zoro #
G4845331
UPC #
781786005792
Country of Origin
China

Dimensions

Height
2.75 in
Width
1.65 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.7 in
Overall Depth
2.8 in
Minimum Wire Size
14 AWG
Face Plate Height
1.3 in
Maximum Wire Size
12 AWG
Display Size
Standard Sized Product
Wire Size
#14 AWG to #12 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Corrosion Resistant, Tamper Resistant
Flange Type
Non-Flanged
NEMA Configuration
5-15
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon
Wiring Method - Plugs and Receptacles
Wire Lead
Number of Gangs
1
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
HP
1/2 hp
Application Environment
Heavy Use Hospital Grade
Tamper Resistant
Yes
Outlet Type
Duplex
Sub-Category
Duplex Receptacles
Mounting Type
Flush
Voltage
125VAC
Weather Resistant
No
Power Indicator
No
Corrosion Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Special Features
Corrosion resistant
Cover Type
No Cover
GFCI
No
Polarized
Yes
AFCI
No
Horsepower Rating
1/2 hp
Grade
Hospital Grade Fed. Spec.
Surge Protection
No
Contact Material
Copper
Housing Material
Composite
For Location
Indoor
Market
Industrial
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Includes
Mounting Hardware
Application
Hospital Grade
Wattage
1875
Nema Rating
5-15R
Material - Mounting Hardware
Screw Mounting
Series
Hospital Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Finder Groove Face

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side
