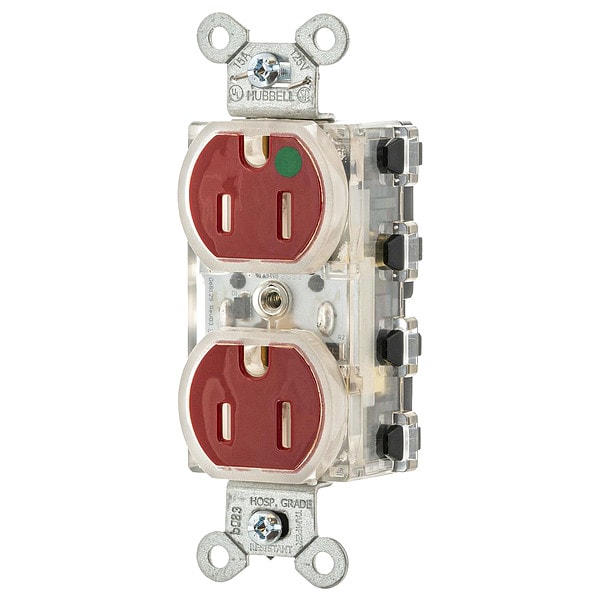

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP8200RLTR
  • Zoro # G806905322
product price:
$
31.49
/ea

Key Features

Receptacle Type
Duplex
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SNAP8200RLTR
Zoro #
G806905322
UPC #
-
Country of Origin
China
Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
IP20
Standards
CSA, UL
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Includes
Mounting Screw
Grade
Hospital Grade
Contact Material
Brass
For Location
Indoor
Number of Outlets
2
Housing Material
Polycarbonate
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
167 Degrees F
GFCI
No
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
AFCI
No
Surge Protection
No
Includes Mounting Hardware
Yes
Polarized
Yes
Visual Indicator Lights
Power Connected
Horsepower Rating
1/2 hp
Connection Orientation
Straight
Ground Contacts
Brass
Current Interrupting
Receptacle certified for current interrupting at full rated current
Face
Nylon
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
Dielectric Voltage
Withstands 2,000V minimum
Automatic Self-grounding Staple
Stainless steel
Mounting Strap
Galvanized steel
Device Color
Red
Flammability
UL 94V-2
Power Contacts
Brass
Base
PBT
Mounting Screws
Zinc plated steel
Status Indicator Lights
Power Connected

Description

The HUBBELL Hospital grade SNAPConnect Receptacle is a duplex straight blade receptacle suitable for use in industrial and hospital environments. This snapconnect receptacle features modular wiring, allowing the connector to be installed during rough-in with snap-in placement after wall installation, streamlining the process of device change-out. It includes tamper-resistant design and an LED indicator on the face to indicate power connection status.


Key Features of the HUBBELL Hospital grade SNAPConnect Receptacle:

  • Connection Type: Modular wiring with straight orientation for facilitates installation

  • Current Rating: Rated for 15 A at 125V AC; rated for current interrupting at specified current levels (15 A)

  • NEMA Configuration: 5-15R duplex outlet with two outlets per device

  • Tamper Resistant: Tamper-resistant feature helps reduce risk of foreign object insertion.

  • Visual Indicator Lights: Face-mounted LED indicates power connection status

  • Operating Temperature Range: -40°F minimum to 167°F maximum (continuous up to 75°C)

  • Hospital Grade: Suitable for hospital environments meeting applicable performance standards.

  • Grounding & Contacts: Grounded design with brass contacts and ground terminals

  • Mount Type & Hardware: Flush mount; includes mounting screws made from zinc plated steel and galvanized steel strap

  • Casing Materials: Nylon face, polycarbonate housing, PBT base, stainless steel self-grounding staple

  • Standards Compliance: Meets CSA and UL requirements; UL 94V-2 flammability rating; dielectric voltage withstands minimum of 2,000V
