  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

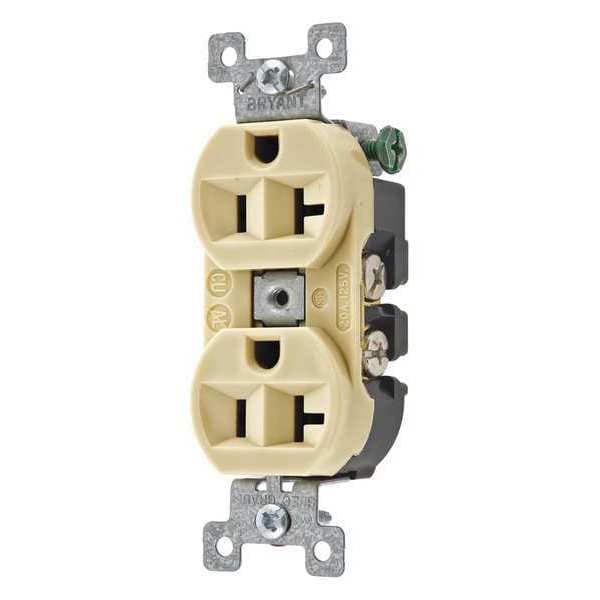

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5362BI - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5362BI

  • Zoro # G4438546

product price: $4.55
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5362BI
Zoro #
G4438546
UPC #
781786715028
Country of Origin
United States

Dimensions

Width
1.38 in
Height
0.92 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
12 AWG
Overall Depth
0.9 in
Face Plate Height
2.7 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #12 AWG
Length
3.28 in
Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Weather Resistant - Plugs and Receptacles
No
Power Indicator
No
Tamper Resistant
No
Material
Nylon
Outlet Type
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Standard Duplex
Corrosion Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
Application Environment
Industrial
Surge Suppression
No
Number of Gangs
1
Mounting Type
Flush
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant
No
HP
1 hp
Includes
Mounting Hardware
GFCI
No
AFCI
No
Market
Commercial, Industrial
Includes Mounting Hardware
Yes
Polarized
Yes
Housing Material
Composite, Thermoplastic
Maximum Operating Temperature
167 Degrees F
Grade
Federal Specification
Horsepower Rating
1 hp
For Location
Indoor
Cover Type
No Cover
Surge Protection
No
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Series
Heavy Duty
Wattage
2500
Application
Heavy Duty Specification Grade
Material - Mounting Hardware
Screw Mounting
Nema Rating
5-20R
Style
Finder Groove Face
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Features
Slender/compact design; Finder Groove Face; Triple wipe contacts
Temperature Rating
Maximum continuous 75°C; minimum -40°C (w/o impact)
Industry Standard(s)
UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Composite, Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186, Voltage Rating 125V AC
