Shop HUBBELL WIRING DEVICE-KELLEMS

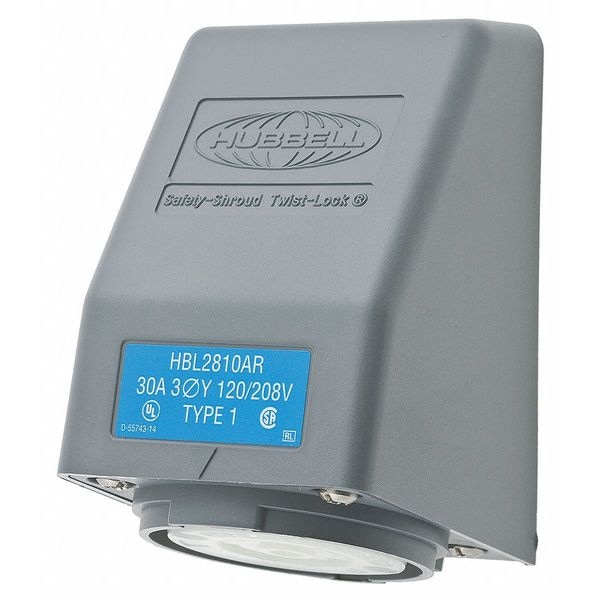

Flanged Locking Receptacle, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount

  • Mfr # HBL2810AR

  • Zoro # G1470201

product price:  $88.29
/ea

Key Features

NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2810AR
Zoro #
G1470201
UPC #
783585235042
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#10 AWG

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray, White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Material
Thermoset
Grade
Industrial
IP Rating
IP20
Special Features
With Cover
Wiring Style
Standard
Mounting Type
Flush Mount
AFCI
No
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
12, 4X
For Environment
Dry
Number of Gangs
1
Flange Shape
Rectangular
Contact Material
Brass
For Location
Indoor
Shrouded
Yes
Polarized
Yes
Horsepower Rating
3 hp
Maximum Operating Temperature
167 Degrees F
Housing Material
Valox
Market
Industrial
Lock Type
twist-lock
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Spring Material
.031" Brass
Flange Material
Gray Valox 357U
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Amps
30
UL 94 Flammability Rating
V-2

Description

• Accepts Hubbell shrouded and standard NEMA locking plugs
• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use
• Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
