Shop BRYANT

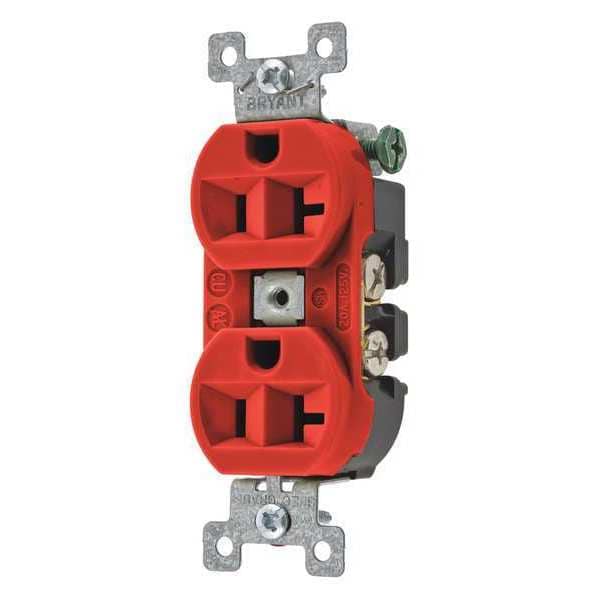

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5362BRED

  • Zoro # G4845541

product price:  $8.15
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5362BRED
Zoro #
G4845541
UPC #
781786715011
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Minimum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
0.9 in
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product
Size
Standard Sized Product
Length
3.28 in
Width
1.38 in
Height
0.92 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Special Features
Corrosion resistant
Corrosion Resistant
Yes
Weather Resistant
No
NEMA Configuration
5-20
Surge Suppression
No
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Number of Gangs
1
Mounting Type
Flush
Outlet Type
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Power Indicator
No
Tamper Resistant
No
Weather Resistant - Plugs and Receptacles
No
Application Environment
Industrial
Mounting Type - Plugs and Receptacles
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
Material
Nylon
Voltage
125VAC
HP
1 hp
Includes
Mounting Hardware
Cover Type
No Cover
For Location
Indoor
Horsepower Rating
1 hp
AFCI
No
Housing Material
Composite, Thermoplastic
Grade
Federal Specification
Hub Type
Feed Through
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
GFCI
No
Surge Protection
No
Includes Mounting Hardware
Yes
Market
Commercial, Industrial
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
2500
Material - Mounting Hardware
Screw Mounting
Style
Finder Groove Face
Nema Rating
5-20R
Application
Heavy Duty Specification Grade
Industry Standard(s)
UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
Temperature Rating
Maximum continuous 75°C; minimum -40°C (w/o impact)
Features
Slender/compact design; Finder Groove Face; Triple wipe contacts
Number of Wall Plates Included
0
IP Rating
IP20
Number of Outlets
2

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Red, Housing Material Composite, Thermoplastic/Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Corrosion Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
