Shop BRYANT

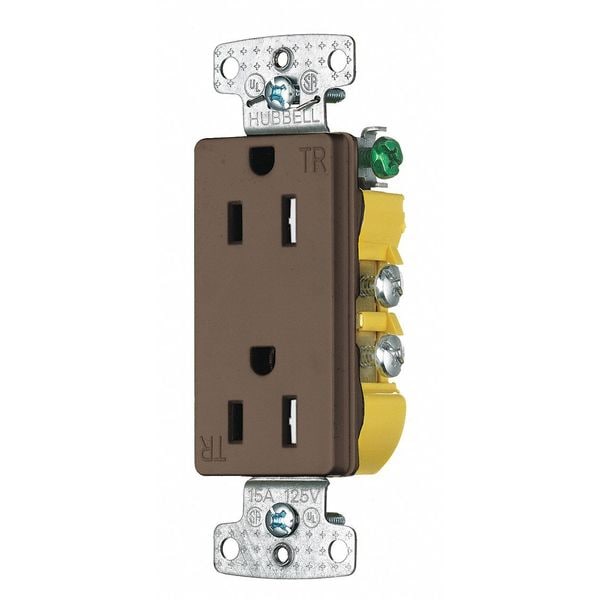

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # RRD15STR

  • Zoro # G4571220

product price:  $5.25
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RRD15STR
Zoro #
G4571220
UPC #
883778301629
Country of Origin
China

Dimensions

Face Plate Width
1.5 in
Face Plate Height
2.6 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
0.9 in
Minimum Wire Size
14 AWG
Maximum Wire Size
12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Surge Suppression
No
Wiring Method - Plugs and Receptacles
Push and Side
Corrosion Resistant
No
HP
1/2 hp
Mounting Type - Plugs and Receptacles
Flush
Outlet Type
Decorator
Weather Resistant - Plugs and Receptacles
No
Material
Thermoplastic
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Decorator Duplex
Power Indicator
No
Weather Resistant
No
Number of Gangs
1
Voltage
125VAC
Tamper Resistant
Yes
Sub-Category
Duplex Receptacles
Application Environment
General Purpose
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Cover Type
No Cover
Horsepower Rating
1/2 hp
Grade
General Use
Includes
Mounting Hardware
Market
Residential
Housing Material
Thermoplastic
AFCI
No
Polarized
Yes
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Surge Protection
No
GFCI
No
For Location
Indoor

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified, UL Listed, Voltage Rating 125V AC, Wire Connection Type Push In, Wiring Method Back, Side
