  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

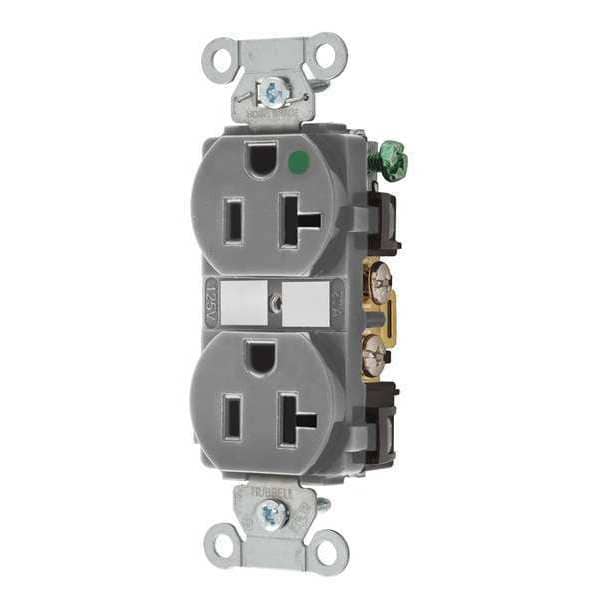

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 8300HBGRY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 8300HBGRY

  • Zoro # G4438519

product price: $12.07
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300HBGRY
Zoro #
G4438519
UPC #
00781786147140
Country of Origin
United States

Dimensions

Face Plate Height
2.7 in
Overall Depth
1.2 in
Face Plate Width
1.6 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
No
Material
Nylon
Application Environment
Hospital Grade
Weather Resistant
No
Number of Gangs
1
Voltage
125VAC
Tamper Resistant
No
HP
1 hp
Outlet Type
Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Corrosion Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type
Flush
Sub-Category
Duplex Receptacles
Mounting Type - Plugs and Receptacles
Flush
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 hp
GFCI
No
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Includes
Mounting Hardware, Wall Plate or Weatherproof Cover
Includes Mounting Hardware
Yes
AFCI
No
Grade
Hospital Grade Fed. Spec.
Surge Protection
No
Contact Material
Brass
Housing Material
Nylon

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
