  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

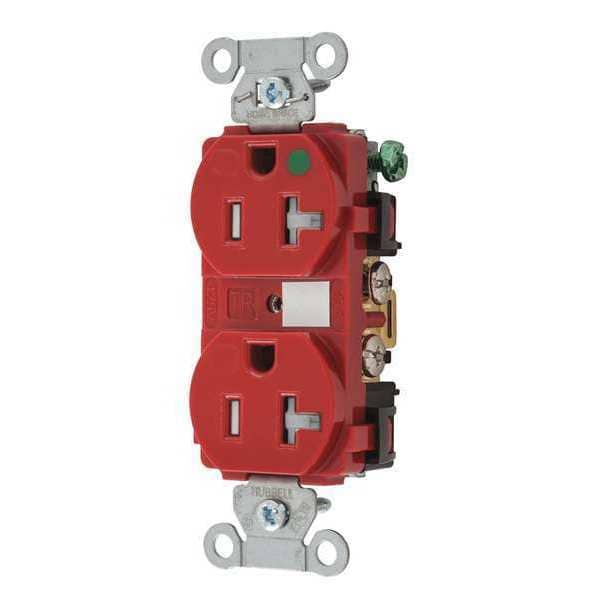

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 8300HBREDTR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 8300HBREDTR

  • Zoro # G4845465

product price: $18.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8300HBREDTR
Zoro #
G4845465
UPC #
781786147263
Country of Origin
Mexico

Dimensions

Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
12 AWG
Face Plate Width
1.6 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Impact Resistant, Tamper Resistant
Flange Type
Non-Flanged
Power Indicator
No
Corrosion Resistant
Yes
Voltage
125VAC
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Number of Gangs
1
Special Features
Corrosion resistant
Weather Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Duplex
Weather Resistant - Plugs and Receptacles
No
Material
Nylon
HP
1 hp
Application Environment
Hospital Grade
Surge Suppression
No
Tamper Resistant
Yes
Surge Protection
No
AFCI
No
Polarized
Yes
Housing Material
Nylon
GFCI
No
Includes
Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Grade
Hospital Grade Fed. Spec.
Maximum Operating Temperature
167 Degrees F
Cover Type
No Cover
Contact Material
Brass
Horsepower Rating
1 hp
Connection Orientation
Straight
UL 94 Flammability Rating
V-2

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
