  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

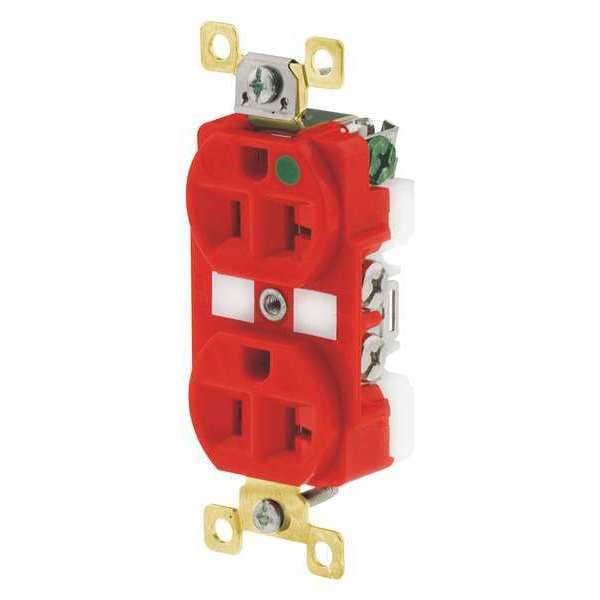

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BRY8300RED - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BRY8300RED

  • Zoro # G4876210

product price: $9.79
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY8300RED
Zoro #
G4876210
UPC #
781786005686
Country of Origin
China

Dimensions

Overall Depth
1.2 in
Face Plate Height
1.3 in
Maximum Wire Size
12 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.7 in
Width
1.54 in
Display Size
Standard Sized Product
Height
1.16 in
Length
3.28 in
Wire Size
#14 AWG to #12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Nylon
Corrosion Resistant
No
NEMA Configuration
5-20
Sub-Category
Duplex Receptacles
Application Environment
Heavy Use Hospital Grade
Mounting Type - Plugs and Receptacles
Flush
HP
1 hp
Number of Gangs
1
Power Indicator
No
Weather Resistant
No
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
No
Voltage
125VAC
Outlet Type - Plugs and Receptacles
Standard Duplex
Tamper Resistant
No
Outlet Type
Duplex
UL 94 Flammability Rating
V-2
Grade
Hospital Grade Fed. Spec.
Polarized
Yes
Includes Mounting Hardware
Yes
Market
Industrial
Includes
Grounding Screw/Clip, Mounting Hardware
Contact Material
Copper
AFCI
No
For Location
Indoor
GFCI
No
Connection Orientation
Straight
Surge Protection
No
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
Maximum Operating Temperature
140 Degrees F
Horsepower Rating
1 hp
Housing Material
Composite
Wattage
2500
Series
Hospital Grade
Style
Finder Groove Face
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Nema Rating
5-20R
Application
Hospital Grade

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Red, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, AFCI No, Horsepower Rating 1 hp
