  11. Midget Locking Plug, ML2-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

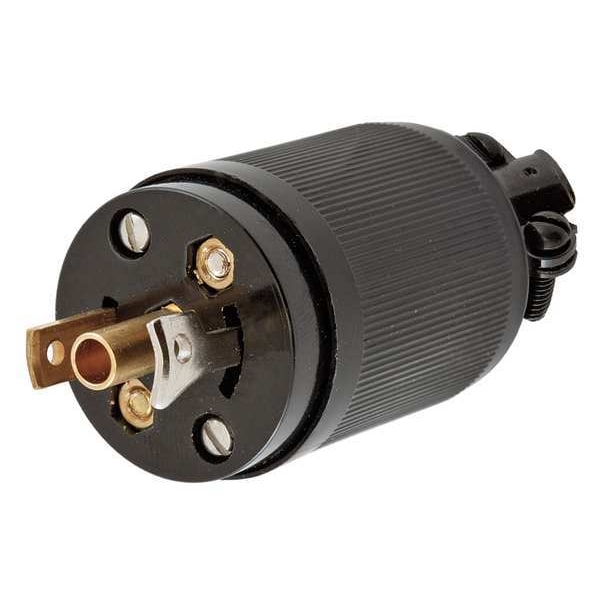

Hubbell Wiring Device-Kellems Midget Locking Plug, ML2-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL7594 - main

Midget Locking Plug, ML2-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL7594

  • Zoro # G0434533

product price: $21.29
/ea

Key Features

NEMA Plug Configuration
ML2-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7594
Zoro #
G0434533
UPC #
783585237770
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.43 in
For Minimum Cable Diameter
0.30 in
Cord Size
0.281 in to 0.421 in
Outside Diameter
1.172 in
Body Length
1.17 in
Maximum Wire Size
14 AWG
Minimum Wire Size
18 AWG
Wire Size
#18 AWG to #14 AWG
Length
1.17 in
Height
2.45 in
Dimensions
1.17 in x 1.17 in x 2.45 in
Width
1.17 in

Details

Item
Midget Locking Plug
NEMA Plug Configuration
ML2-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Body Material
Nylon
Material
Nylon
Application
Industrial/Commercial
Market
Commercial, Industrial
Polarized
Yes
Minimum Operating Temperature
-40 Degrees C
Housing Material
Nylon
Blade Material
Brass
For Environment
Dry
For Location
Indoor
Midget Locking
Yes
Maximum Operating Temperature
75 Degrees C
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Cord Type
All Listed Portables
Amperage Rating
15 A
Dielectric Strength
Withstands 2,000V minimum
Cord Range
0.281"-0.421"(7.1-10.7)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Cord Mounted
NEMA Configuration
ML2-15
Amps
15 A

Description

• Abuse resistant nylon housing
• Phenolic body for high heat resistance
• Angled body design for low profile in tight spaces
• Totally insulated body adds extra measure of safety
